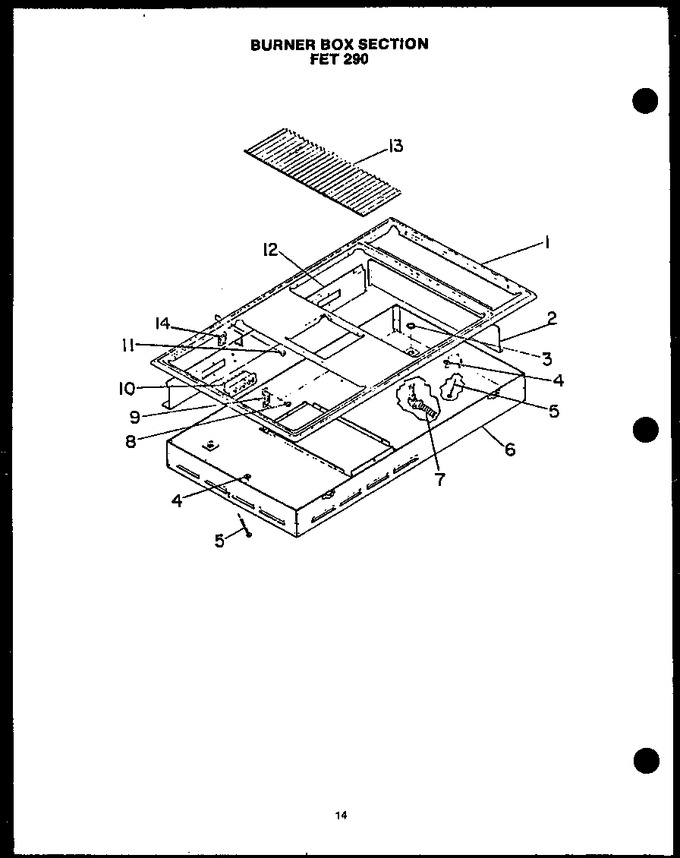

01 - Burner Box Section
02 - Control Section
03 - Cooktop Module
04 - Glass Ceramic Module
05 - Page 1
06 - Solid Element Module
07 - Ventilation Section
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0300166 | Main Top, Chrome |
|
- | |||||
| 1 | 300982W | Main Top, Frame White Enamel |
|
- | |||||
| 1 | 300982B | Main Top, Frame Black Enamel |
|
- | |||||
| 2 | Y0040821 | Switch Shield Et-590 595 |
|
- | |||||
| 3 | Y00000000 | See Note Part Of Item 7 |
|
- | |||||
| 4 | 0041861 | Nut 1/4-20 Sq. Et590 595 |
|
- | |||||
| 5 | Y0041836 | Screw 1/4-20-4`` 590 595 |
|
- | |||||
| 6 | 0040474 | Burner Box W/a W/vent Ket595 |
|
- | |||||
| 7 | Y0043748 | 5651118 C |
|
- | |||||
| 8 | Y0041785 | Screw, No.6-32 X .250 Pan Hd Ph |
|
- | |||||
| 9 | Y0040965 | Plug Block Mtg Brkt Et590 595 |
|
- | |||||
| 10 | Y0042123 | Element, Contact-module Top |
|
- | |||||
| 10 | Y0042210 | Plug Block Modular Top |
|
- | |||||
| 11 | Y0041810 | Screw |
|
- | |||||
| 11 | 0041896 | Tinnerman Clip Pyro Th |
|
- | |||||
| 12 | 0040820 | Plug Block Baffle Et590 595 |
|
- | |||||
| 13 | 301110T | Vent Cover, Lt. Gray |
|
- | |||||
| 13 | 0058941 | Vent Cover, Cooktop |
|
- | |||||
| 14 | 0041902 | Speed Nut (twin Type) |
|
- | |||||
| 14 | Y0054254 | Switch, Fan |
|
- | |||||
| 14 | Y0071911 | Screw |
|
- | |||||
| NI | Y0041997 | Insulation Board |
|
- |
