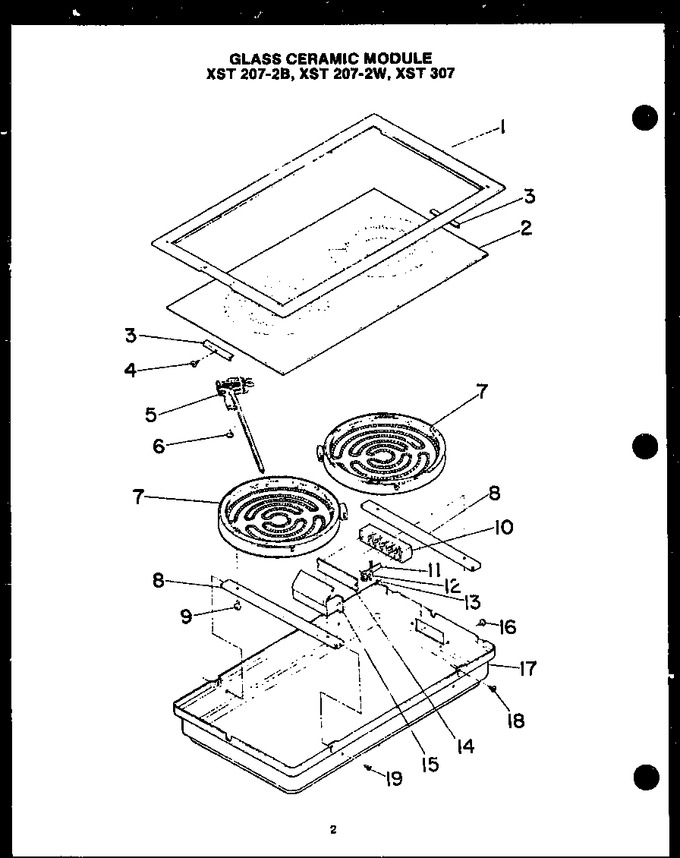

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301111W		Frame, Glass Assy		Appelez-nous	-
1	0058739		Module Frame Glass Assy (blk)		Appelez-nous	-
1	Y0041480		Module Frame Glass Assy-chrome		Appelez-nous	-
2	Y00000000		See Note Glass Ceramic -- (part Of Item 1)		Appelez-nous	-
3	Y0040977		Glass Retainer, Xst30		Appelez-nous	-
4	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
5	Y00000000		See Note Part Of Item 7		Appelez-nous	-
6	Y00000000		See Note Part Of Item 7		Appelez-nous	-
7	Y0042167		Element, Glass Top		Appelez-nous	-
8	0040970		Element Mtg. Brkt		Appelez-nous	-
9	WP90767		Screw   (Replaces: Y0041808)			Immediately	$ 7.04
10	Y0042211		Module, Plug Block		Appelez-nous	-
11	Y0052041		Contact, Spade-ground				$ 4.83
11	Y675204044J		Contact, Spade - Power		Appelez-nous	-
12	0043666		5644044 Jumper Wire		Appelez-nous	-
13	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
14	Y0041994		Insulator-cooktop Module		Appelez-nous	-
15	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
16	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
17	0040607		Module Pan (blk)		Appelez-nous	-
18	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
19	WP90767		Screw   (Replaces: Y0041808)			Immediately	$ 7.04
