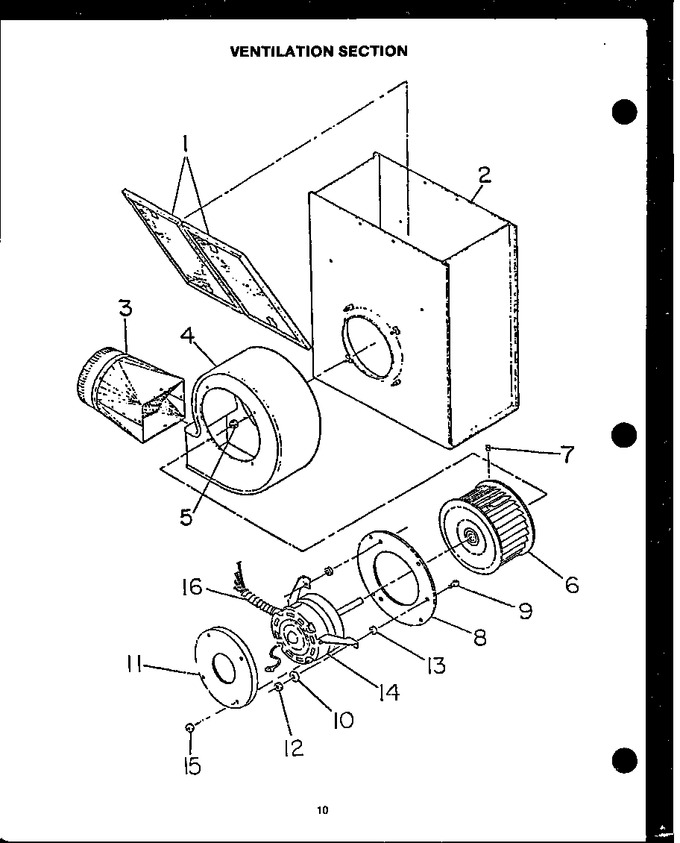

01 - Burner Box Section
02 - Control Section
03 - Cooktop Module
04 - Glass Ceramic Module
05 - Page 1
06 - Solid Element Module
07 - Ventilation Section
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RHF0518 | Filter Exhaust Ket595 (Replaces: Y0042024) |
|
$ 17.21 | |||||
| 2 | 0059560 | Plenum |
|
- | |||||
| 2 | Y0059562 | Orifice Assy. |
|
- | |||||
| 3 | Y0059493 | Transition |
|
- | |||||
| 4 | 0041093 | Blower Housing W/a Ket595 |
|
- | |||||
| 5 | 0041862 | Lock-nut Nylon Ket595 |
|
- | |||||
| 6 | Y0042752 | Fan Wheel Ket595 |
|
- | |||||
| 7 | Y00000000 | See Note Screw -- (part Of Item 6) |
|
- | |||||
| 8 | 0059470 | Plate, Motor Mtg |
|
- | |||||
| 9 | 0098549 | Bolt, Shoulder |
|
- | |||||
| 10 | 0041933 | Washer K |
|
- | |||||
| 11 | 0059471 | Motor Cover |
|
- | |||||
| 12 | M0282009 | Nut (Replaces: Y0097885) |
|
$ 12.06 | |||||
| 13 | 0041981 | Rubber Grommet |
|
- | |||||
| 14 | Y0058327 | Motor, Fan 115v 60hz |
|
- | |||||
| 15 | WP3400029 | Nut (Replaces: Y0041857) |
|
Immediately | $ 6.98 | ||||
| 16 | 0042115 | Conduit (3/8 X 18) |
|
- | |||||
| 16 | Y0058971 | Connector, 3/8`` |
|
- | |||||
| NI | 0059569 | Gasket, Motor Mtg |
|
- | |||||
| NI | 0059120 | Spacer, Motor Cover |
|
- |
