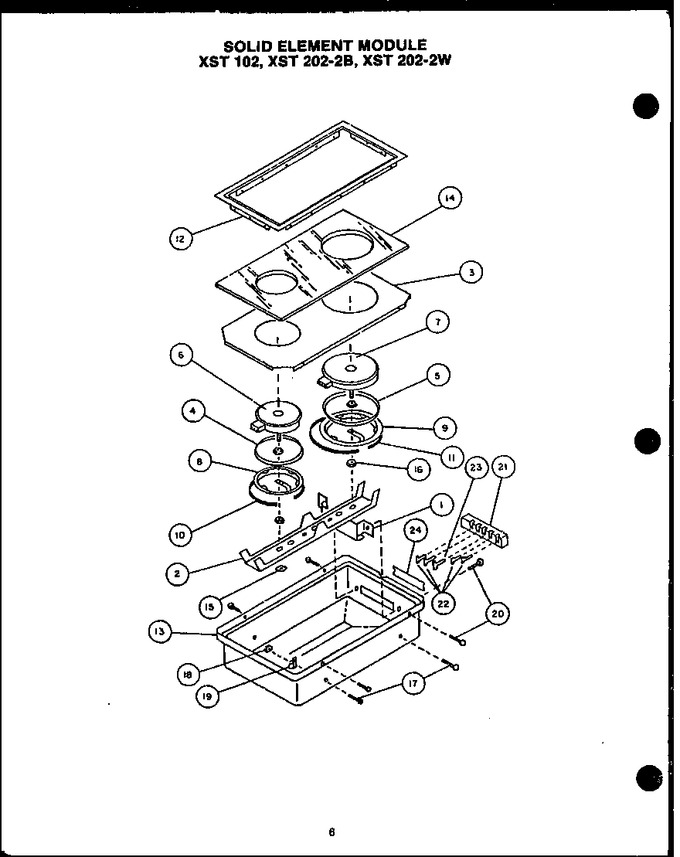

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0058682		Knob, Inf Switch, Black		Appelez-nous	-
1	0061496		Bracket, Plug Blk. Mtg.		Appelez-nous	-
2	Y0061495		Bracket, Elem. Mtg.		Appelez-nous	-
3	0061494		Support, Glass		Appelez-nous	-
4	0061613		Ring Small Trim (black)		Appelez-nous	-
5	0061612		Ring Large Trim (black)		Appelez-nous	-
6	WP3147131		Element, Small   (Replaces: Y0061611)				$ 244.76
7	0061610		Element, Large		Appelez-nous	-
8	0061609		Gasket, Ring		Appelez-nous	-
9	0061608		Gasket, Ring		Appelez-nous	-
10	Y0059631		Gasket		Appelez-nous	-
11	Y0059632		Gasket		Appelez-nous	-
12	300983W		Module Top-trim Only-(wht)		Appelez-nous	-
12	Y0061482		Sub 300752, Module Top		Appelez-nous	-
12	300983B		Module Top-elect (blk Enamel)		Appelez-nous	-
13	Y0052838		Pan, Module		Appelez-nous	-
14	Y0301169		Top, Glass		Appelez-nous	-
14	Y0061576		Glass, Top		Appelez-nous	-
15	0061614		Spring, Leaf		Appelez-nous	-
16	0061486		Nut		Appelez-nous	-
17	0041833		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
18	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
19	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
20	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
21	Y0042211		Module, Plug Block		Appelez-nous	-
22	Y0052040		Contact, Spade-power		Appelez-nous	-
23	Y0052041		Contact, Spade-ground				$ 4.83
24	Y0041994		Insulator-cooktop Module		Appelez-nous	-
