SELECT A DIAGRAM

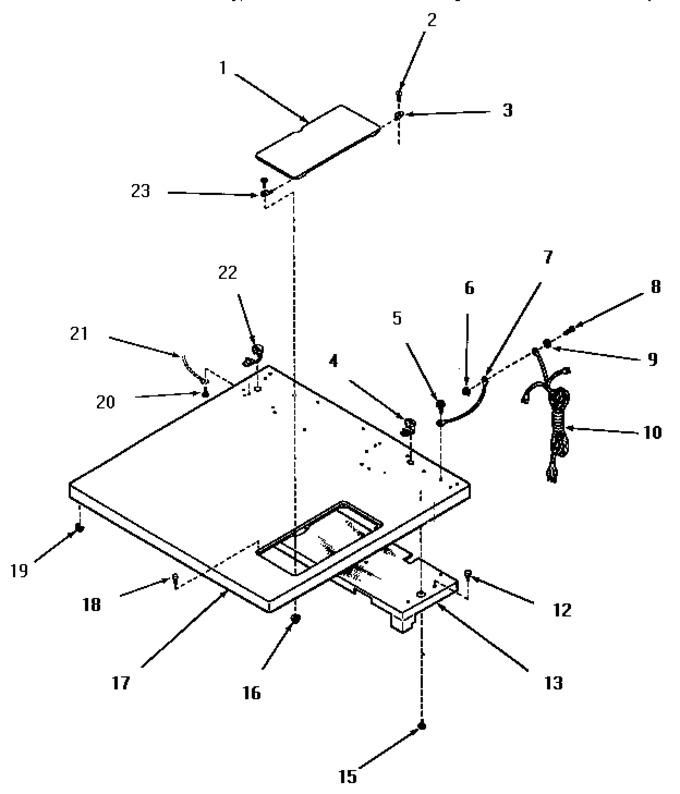

01 - Cabinet Top


02 - Clothes Drum


03 - Control Hood


04 - Control Panel And Controls


05 - Door Release


06 - Exhaust Fan


07 - Front Frame And Air Shroud


08 - Glow Bar Ignition Burner


09 - Glow Bar Ignition Burner


10 - Heater Box


11 - Loading Door


12 - Motor, Idler And Belt


13 - Panel Support Plate And Fluorescent Tube


14 - Panels


15 - Rear Frame And Frame Base


16 - Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55905H		Outer Door Panel, Harvest Gold		Appelez-nous	-
1	55905C		Access Door, Coppertone		Appelez-nous	-
1	55905A		Access Door, Avocado		Appelez-nous	-
1	55905W		Access Door, White		Appelez-nous	-
2	03630		Screw,6-32 X 3/8 Round		Appelez-nous	-
3	51351		Hinge,rear		Appelez-nous	-
4	21903		Strain Relief		Appelez-nous	-
5	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
6	M0282009		Locknut   (Replaces: 23951)				$ 12.06
7	54300		Ground Wire, Green		Appelez-nous	-
8	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
9	03815		Lockwasher,no.10 Ext Shk				$ 3.34
10	51508		Power Cord		Appelez-nous	-
12	51355		Bumper		Appelez-nous	-
13	52614		Top Baffle Assembly		Appelez-nous	-
15	55985		Screw,8b-18 X 3/8 Ind		Appelez-nous	-
16	SM5038-12		Nut,nylon   (Replaces: 22678)			Immediately	$ 53.70
17	55904A		Cabinet Top, Avocado		Appelez-nous	-
17	55904H		Cabinet Top, Harvest Gold		Appelez-nous	-
17	55904W		Cabinet Top, White		Appelez-nous	-
17	55904C		Cabinet Top, Coppertone		Appelez-nous	-
18	53445		Bumper		Appelez-nous	-
19	23007		Caged Nut		Appelez-nous	-
20	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
21	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
22	Sub. To D510402P		Relief,strain   (Replaces: 52113)		Appelez-nous	-
23	51350		Hinge,front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
