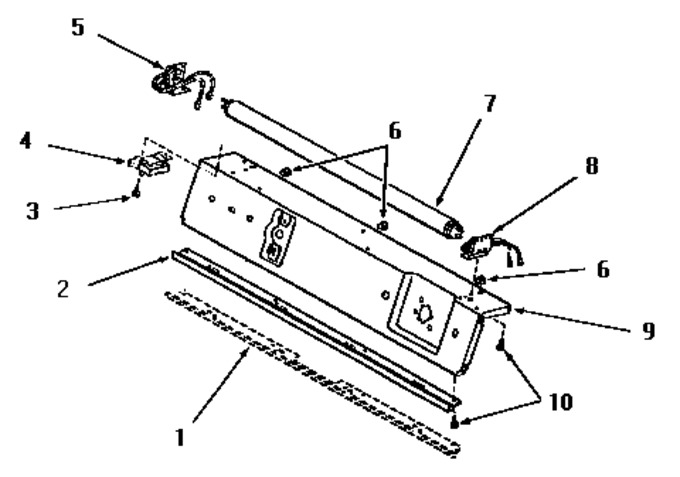

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Panel Support Bracket		Appelez-nous	-
2	Y52929		Panel Trim		Appelez-nous	-
3	55985		Screw,8b-18 X 3/8 Ind		Appelez-nous	-
4	21975		Ballast		Appelez-nous	-
5	23398		Fluorescent Tube Holder, Left		Appelez-nous	-
6	21176		Bumper		Appelez-nous	-
7	24442		No Longer Available		Appelez-nous	-
8	23397		Fluorescent Tube Holder, Right		Appelez-nous	-
9	53438		Panel Support Plate		Appelez-nous	-
10	55985		Screw,8b-18 X 3/8 Ind		Appelez-nous	-
