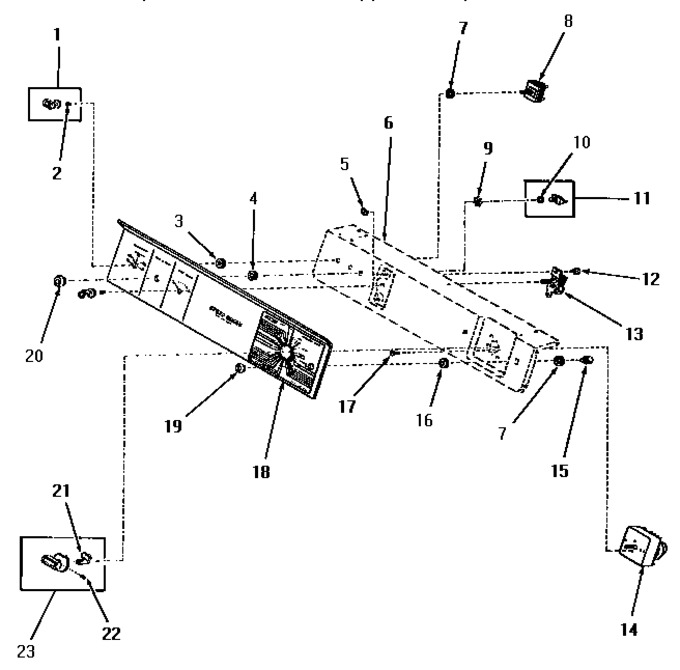

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	26816		Assy,knob-switch		Appelez-nous	-
2	23392		Clip For 26816 Knob		Appelez-nous	-
3	24391		Knurled Nut		Appelez-nous	-
4	23406		Knurled Nut		Appelez-nous	-
5	23407		Nut,speed-8a Tinn C15		Appelez-nous	-
6	Y00000000		See Note Panel Support Plate		Appelez-nous	-
7	91176		Lockwasher,3/8 Intshkp				$ 1.44
8	52623		Switch,fabric Selector		Appelez-nous	-
9	25820		Lockwasher,1/2 Int Shk		Appelez-nous	-
10	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
11	55878		Assy, Switch		Appelez-nous	-
12	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
13	53516		Buzzer		Appelez-nous	-
14	53466CP		Timer   (Replaces: 53466)		Appelez-nous	-
15	23401		Switch		Appelez-nous	-
16	23400		Ferrule		Appelez-nous	-
17	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
18	55877		Control Panel		Appelez-nous	-
19	23399		Switch Collar		Appelez-nous	-
20	23130		Switch Collar		Appelez-nous	-
21	24283		Indicator,timer Knob		Appelez-nous	-
22	20310		Screw,8-32 X 1/4 Hex S		Appelez-nous	-
23	55900		Timer Knob Assembly		Appelez-nous	-
