SELECT A DIAGRAM

01 - Cabinet Top


02 - Clothes Drum


03 - Control Hood


04 - Control Panel And Controls


05 - Door Release


06 - Exhaust Fan


07 - Front Frame And Air Shroud


08 - Glow Bar Ignition Burner


09 - Glow Bar Ignition Burner


10 - Heater Box


11 - Loading Door


12 - Motor, Idler And Belt


13 - Panel Support Plate And Fluorescent Tube


14 - Panels


15 - Rear Frame And Frame Base


16 - Wire And Terminals

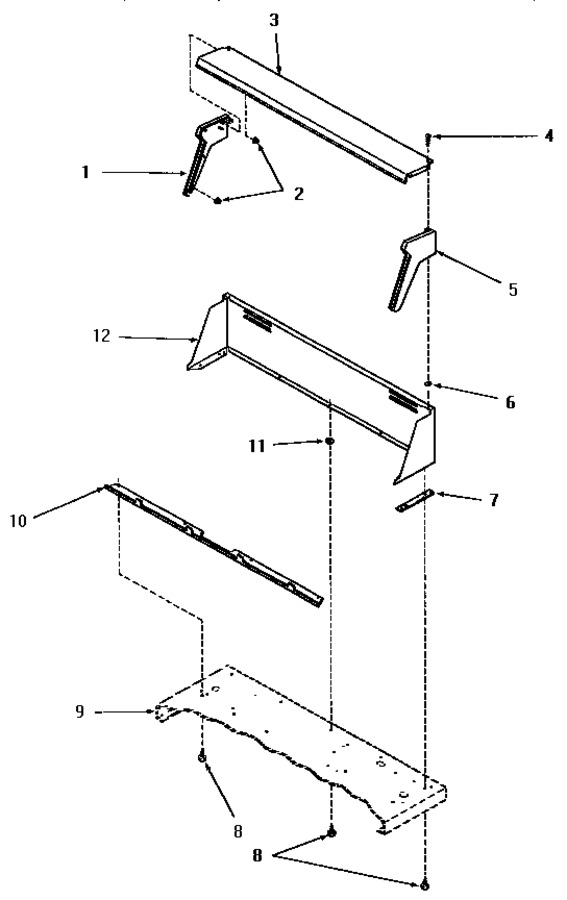

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23367		Wiring Diagram		Appelez-nous	-
2	23409		Nut		Appelez-nous	-
3	52921		Control Hood Top		Appelez-nous	-
4	25232		Screw,8ab-18x7/8 Oval		Appelez-nous	-
5	23368		Wiring Diagram		Appelez-nous	-
6	24522		Nut,speed-8ab-18 C1995		Appelez-nous	-
7	23028		Gasket,control Box End		Appelez-nous	-
8	55985		Screw,8b-18 X 3/8 Ind		Appelez-nous	-
9	Y00000000		See Note Cabinet Top		Appelez-nous	-
10	52912		Panel Support Bracket		Appelez-nous	-
11	23425		Washer,7/32idx7/16odx.		Appelez-nous	-
12	55906A		Control Hood, Avocado		Appelez-nous	-
12	55906C		Control Hood, Coppertone		Appelez-nous	-
12	55906W		Control Hood, White		Appelez-nous	-
12	55906H		Control Hood, Harvest Gold		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
