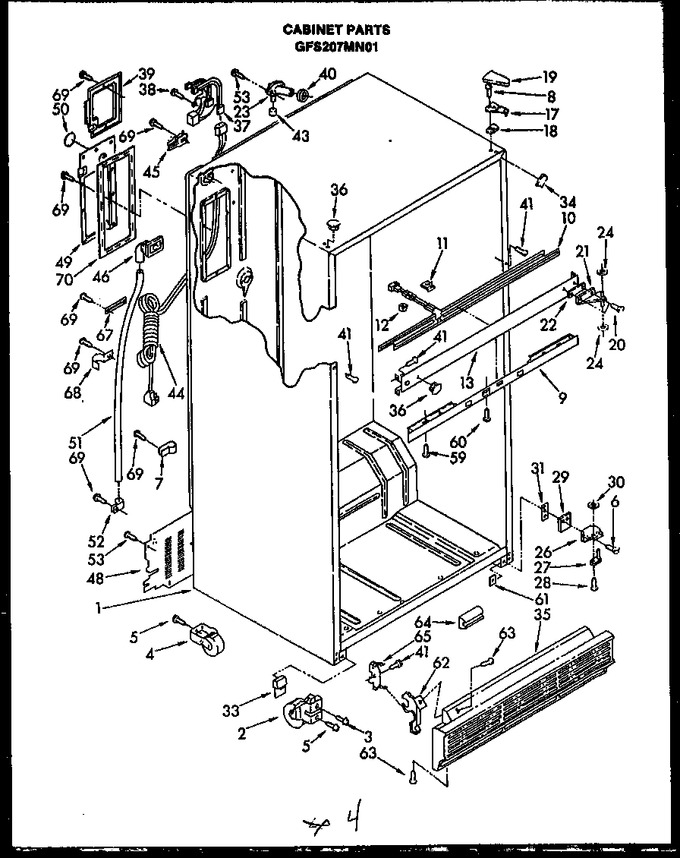

01 - Cabinet Parts


02 - Compartment Separator Parts


03 - Fz Door Parts


04 - Page 1


05 - Ref Door Parts


06 - Shelf Parts


07 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Cabinet - Not Field Replaceable		Appelez-nous	-
2	0056723		Roller, Cabinet		Appelez-nous	-
3	0056527		Screw,5/16-24x1 1/2		Appelez-nous	-
4	0056722		Roller, Rear		Appelez-nous	-
5	Y0056520		Screw		Appelez-nous	-
6	0056535		Screw		Appelez-nous	-
7	56591		Thermostat,low Limit		Appelez-nous	-
8	0056544		Screw		Appelez-nous	-
9	Y0056909		Cover, Front Control		Appelez-nous	-
10	0056771		Heater, Mullion		Appelez-nous	-
11	0056821		Clip, Mullion Heater		Appelez-nous	-
12	Y0056654		Spacer		Appelez-nous	-
13	56769L		Center Rail - Almond		Appelez-nous	-
13	56769W		Center Rail - White		Appelez-nous	-
17	0311169		Hinge, Top		Appelez-nous	-
18	Y0311170		Hinge Shim		Appelez-nous	-
19	56624L		Cover, Hinge - Almond		Appelez-nous	-
19	56624W		Cover, Hinge - White		Appelez-nous	-
20	0056535		Screw		Appelez-nous	-
21	0056613		Hinge, Center		Appelez-nous	-
22	0056614		Shim, Center Hinge		Appelez-nous	-
23	Y56620		Manual,install/opera		Appelez-nous	-
24	0056517		Sub 56509, Washer		Appelez-nous	-
26	Y0056921		Bracket, Bottom Hinge		Appelez-nous	-
27	56610		Manual, Operation		Appelez-nous	-
28	310628		Washer		Appelez-nous	-
29	Y0056617		Shim, Bottom Hinge Brkt.		Appelez-nous	-
30	56563		Hex Nut No.10-32 Nickel		Appelez-nous	-
31	Y0056780		Spacer, Hinge Bracket		Appelez-nous	-
33	Y0056823		Filler, Grille		Appelez-nous	-
34	56876W		Filler, Corner - White		Appelez-nous	-
34	56876L		Filler, Corner - Almond		Appelez-nous	-
35	0056822		Grille		Appelez-nous	-
36	56625W		Hole Plug - White		Appelez-nous	-
36	56625L		Hole Plug-almond		Appelez-nous	-
37	Y0311161		Cabinet Wiring Assy.		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: Y0056541)				$ 7.16
39	Y0056799		Cover, Wiring		Appelez-nous	-
40	0056814		Seal, Water Tube Fitting		Appelez-nous	-
41	56505		Assy,wiring Harness		Appelez-nous	-
43	0056512		Cap, Water Tube		Appelez-nous	-
44	Y0056645		Service Cord		Appelez-nous	-
45	Y0056644		Clamp		Appelez-nous	-
46	0056639		Fitting, Drain		Appelez-nous	-
48	0056794		Cover, Rear		Appelez-nous	-
49	Y0056792		Cover, Plug		Appelez-nous	-
50	56952		Hole Seal		Appelez-nous	-
51	56575		Tube, Drain		Appelez-nous	-
52	56612		Manual, Operation		Appelez-nous	-
53	0056545		Screw		Appelez-nous	-
59	Y0056532		Sub 56513, Screw		Appelez-nous	-
60	Y0056560		Screw		Appelez-nous	-
61	Y0056615		Tap Plate, Hinge		Appelez-nous	-
62	0056697		Support		Appelez-nous	-
63	0056559		Screw		Appelez-nous	-
64	0056535		Screw		Appelez-nous	-
65	0056725		Clip, Grille Retainer		Appelez-nous	-
67	Y0056800		Clamp, Tube		Appelez-nous	-
68	Y0056872		Clamp		Appelez-nous	-
69	Y0056568		Screw		Appelez-nous	-
70	0056919		Sub 57143, Gasket, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
