01 - Cabinet Parts


02 - Compartment Separator Parts


03 - Fz Door Parts


04 - Page 1


05 - Ref Door Parts


06 - Shelf Parts


07 - Unit Parts

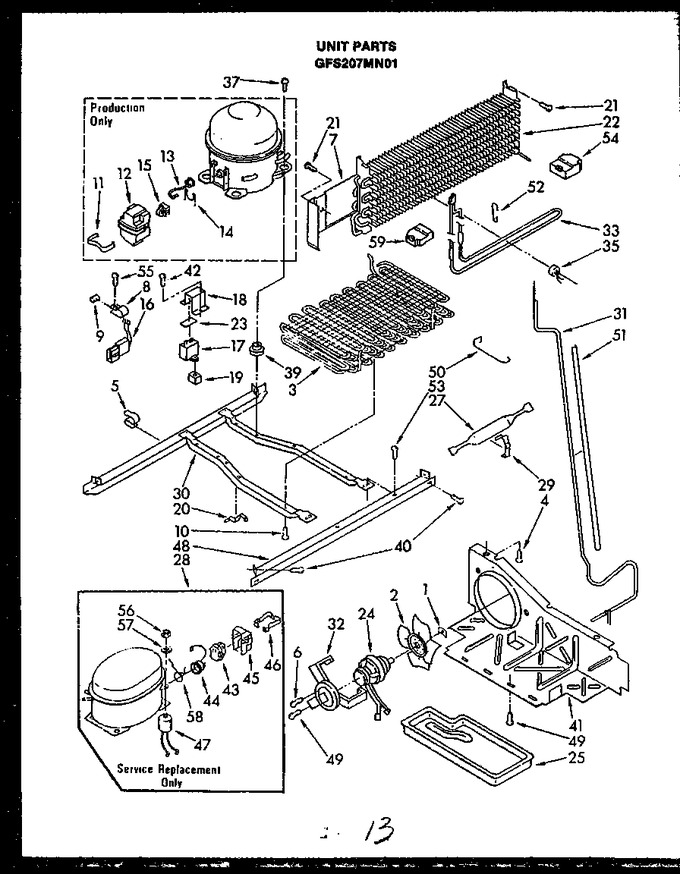

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056506		Speednut		Appelez-nous	-
2	Y0056730		Fan Blade		Appelez-nous	-
3	Y0056498		Condenser		Appelez-nous	-
4	56542		Sticker		Appelez-nous	-
5	56590		Thermostat,cool-down		Appelez-nous	-
6	56539		Buzzer,230/50		Appelez-nous	-
7	Y0056796		Heat Shield, Evaporator		Appelez-nous	-
8	0056573		Tube Clamp		Appelez-nous	-
9	Y0056574		Dampener		Appelez-nous	-
10	0056521		Sub 56543, Screw		Appelez-nous	-
11	56681		Spring, Case Retaining		Appelez-nous	-
12	Y0056756		Case, Relay		Appelez-nous	-
13	Y0311166		Overload		Appelez-nous	-
14	Y0056680		Spring, Overload		Appelez-nous	-
15	2154436		Relay-ptc   (Replaces: Y0056709)				$ 121.45
16	Y0311167		Housing Plug		Appelez-nous	-
17	0056908		Capacitor		Appelez-nous	-
18	Y0311157		Cover, Capacitor		Appelez-nous	-
19	Y0056570		Grommet		Appelez-nous	-
20	Y0056589		Clip		Appelez-nous	-
21	56505		Assy,wiring Harness		Appelez-nous	-
22	0056931		Evaporator		Appelez-nous	-
23	Y0311159		Spacer, Capacitor		Appelez-nous	-
24	833697		Sub 56804, Motor, Fan   (Replaces: Y0311168)			Immediately	$ 79.34
25	Y0056790		Sub 57068, Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: Y0056797)			Immediately	$ 47.31
28	W10439652		Compressor Assy   (Replaces: Y0056501)				$ 379.03
29	56587		Screw,1/4-20 Hex Hd Sh		Appelez-nous	-
30	Y0056795		Frame		Appelez-nous	-
31	56938		Bumper		Appelez-nous	-
32	Y0056588		Bracket, Fan Motor		Appelez-nous	-
33	0311164		Defrost Heater		Appelez-nous	-
35	0311162		Bi-metal Defrost		Appelez-nous	-
37	Y0056546		Screw		Appelez-nous	-
39	Y0056912		Grommet		Appelez-nous	-
40	Y0056528		Screw		Appelez-nous	-
41	Y0056793		Air Baffle		Appelez-nous	-
42	Y0056529		Screw		Appelez-nous	-
43	0056839		Sub 56503,overload		Appelez-nous	-
44	56503		Timer		Appelez-nous	-
45	Y0056755		Sub 56840, Cover, Relay		Appelez-nous	-
46	Y0056646		Strap, Relay Cover		Appelez-nous	-
47	56502		Spacer,timer		Appelez-nous	-
48	Y0056791		Rail, Mtg.		Appelez-nous	-
49	0056523		Sub 56545, Screw		Appelez-nous	-
50	Y0056802		Guard, Fan		Appelez-nous	-
51	Y0056854		Sleeve		Appelez-nous	-
52	Y0311156		Support Heater		Appelez-nous	-
53	Y0056520		Screw		Appelez-nous	-
54	Y0056932		Support (right)		Appelez-nous	-
55	Y0056514		Sub 56525, Screw		Appelez-nous	-
56	56549		Plate,terminal Bracket		Appelez-nous	-
57	Y0056550		Washer		Appelez-nous	-
58	Y0056904		Spring, Overload		Appelez-nous	-
59	0056933		Support (left)		Appelez-nous	-
