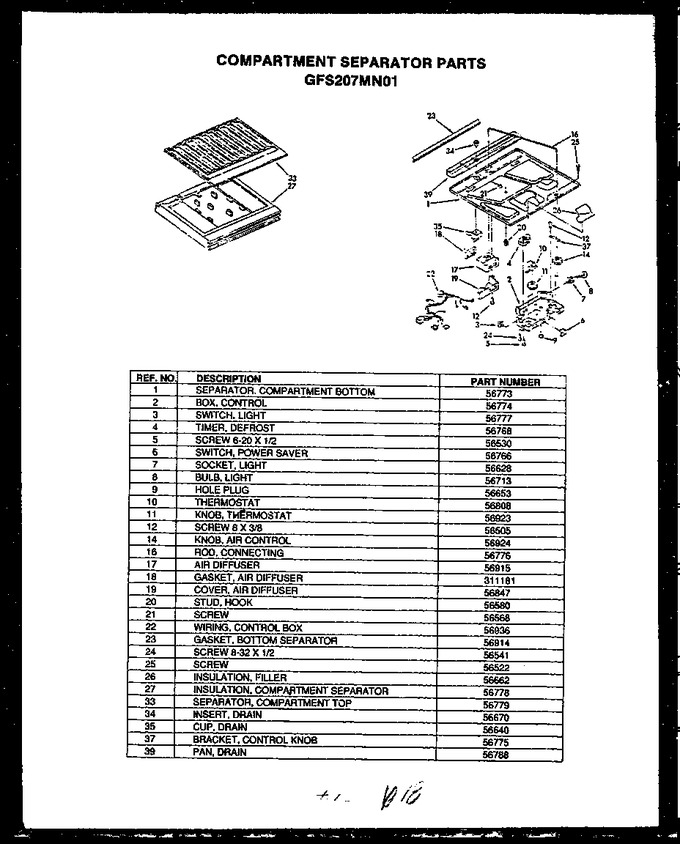

02 - Compartment Separator Parts


03 - Fz Door Parts


04 - Page 1


05 - Ref Door Parts


06 - Shelf Parts


07 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056773		Separator, Bottom		Appelez-nous	-
2	Y0056774		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: Y0056777)			Immediately	$ 36.36
4	Y0056768		Sub 57052, Timer Defrost		Appelez-nous	-
5	Y0056530		Screw, 6-20 X 1/2		Appelez-nous	-
6	Y0056766		Switch, Toggle		Appelez-nous	-
7	56628		Manual, Operation		Appelez-nous	-
8	8009		Sub 42175, Lamp,oven   (Replaces: Y0056713)			Immediately	$ 16.80
9	Y0056653		Hole Plug		Appelez-nous	-
10	1123394		Thermostat   (Replaces: Y0056808)				$ 188.53
11	0056923		Knob, Thermostat		Appelez-nous	-
12	56505		Assy,wiring Harness		Appelez-nous	-
14	Y0056924		Knob, Air Control		Appelez-nous	-
16	Y0056776		Rod, Connecting		Appelez-nous	-
17	Y0056915		Air Diffuser		Appelez-nous	-
18	Y0311181		Gasket, Air		Appelez-nous	-
19	Y0056847		Cover, Air Diffuser		Appelez-nous	-
20	Y0056580		Stud, Hook		Appelez-nous	-
21	Y0056568		Screw		Appelez-nous	-
22	Y0056936		Wiring Assy., Control Box		Appelez-nous	-
23	56914		Assy, Wiring Harness		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2   (Replaces: Y0056541)				$ 7.16
25	Y0056522		Sub 56513, Screw		Appelez-nous	-
26	Y0056662		Insulation, Filler		Appelez-nous	-
27	Y0056778		Insulation, Separator		Appelez-nous	-
33	Y0056779		Separator, Top		Appelez-nous	-
34	Y0056670		Drain Insert		Appelez-nous	-
35	Y0056640		Cup, Drain		Appelez-nous	-
37	Y0056775		Bracket, Control Knob		Appelez-nous	-
39	Y0056788		Pan, Drain		Appelez-nous	-
