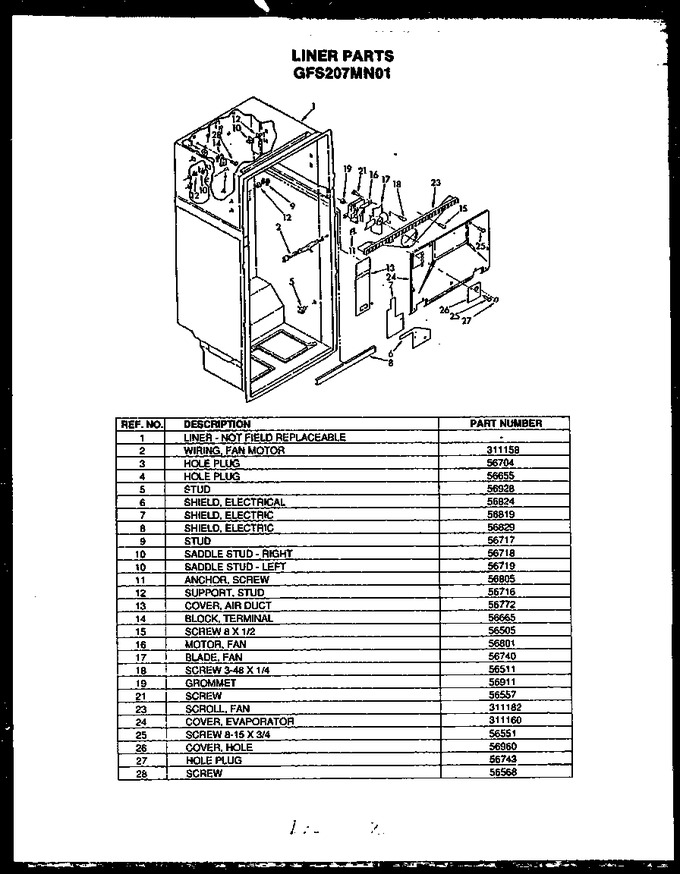

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Liner - Not Field Replaceable		Appelez-nous	-
2	Y0311158		Wiring, Fan Motor		Appelez-nous	-
3	Y0056704		Hole Plug		Appelez-nous	-
4	Y0056655		Hole Plug		Appelez-nous	-
5	Y0056928		Stud		Appelez-nous	-
6	Y0056824		Shield, Electrical		Appelez-nous	-
7	Y0056819		Shield, Electrical		Appelez-nous	-
8	Y0056829		Shield, Electrical		Appelez-nous	-
9	Y0056717		Stud 4pc Set		Appelez-nous	-
10	Y0056718		Sub 56717, Stud		Appelez-nous	-
10	Y0056719		Sub 56717, Stud		Appelez-nous	-
11	Y0056805		Anchor, Screw		Appelez-nous	-
12	56716		Bracket		Appelez-nous	-
13	Y0056772		Cover, Air Duct		Appelez-nous	-
14	0056665		Terminal Block		Appelez-nous	-
15	56505		Assy,wiring Harness		Appelez-nous	-
16	482731		Fan Motor   (Replaces: Y0056801)			Immediately	$ 71.15
17	56740		Plate,face-coin Door-l		Appelez-nous	-
18	Y0056511		Screw		Appelez-nous	-
19	56911		Assy,wiring Harness		Appelez-nous	-
21	56557		Screw				$ 74.99
23	Y0311182		Scroll, Fan		Appelez-nous	-
24	Y0311160		Evaporator Cover		Appelez-nous	-
25	Y0056551		Screw, 8-15 X 3/4		Appelez-nous	-
26	Y0056960		Hole Cover, Evaporator		Appelez-nous	-
27	Y0056743		Hole Plug		Appelez-nous	-
28	Y0056568		Screw		Appelez-nous	-
