Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 16026881 Tech Sheet Appelez-nous -
1 W10161759 Installation, Instructions Appelez-nous -
1 W10161019 Use & Care Guide Appelez-nous -
2 W10177364 Top Appelez-nous -
3 6009-001476 Screw-hex (2) Special Order $ 1.66

4 W10222765 Panel-console Assembly Appelez-nous -
5 35001162 Frame-plate Appelez-nous -
6 6006-001174 Screw-tapping (2) Special Order $ 0.85

7 35001232 Support - Panel Appelez-nous -
8 6002-000470 Screw-tapping (4) Special Order $ 0.85

9 600200213 Screw-tapping (5) Appelez-nous -
10 35001269 User Interface Special Order $ 276.31

11 6006-001170 Screw-tapping (1) Special Order $ 0.85

12 35001229 Panel-control Appelez-nous -
13 35001231 Bracket-panel Special Order $ 8.10

14 34001419 Lever-power Appelez-nous -
15 555555 Screw-tapping (4)   (Replaces: 6002-000231) Special Order $ 151.94

16 W10175952 Button, Power Special Order $ 34.13

17 W10175949 Knob, Control Appelez-nous -
18 35001264 Harness, Main Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

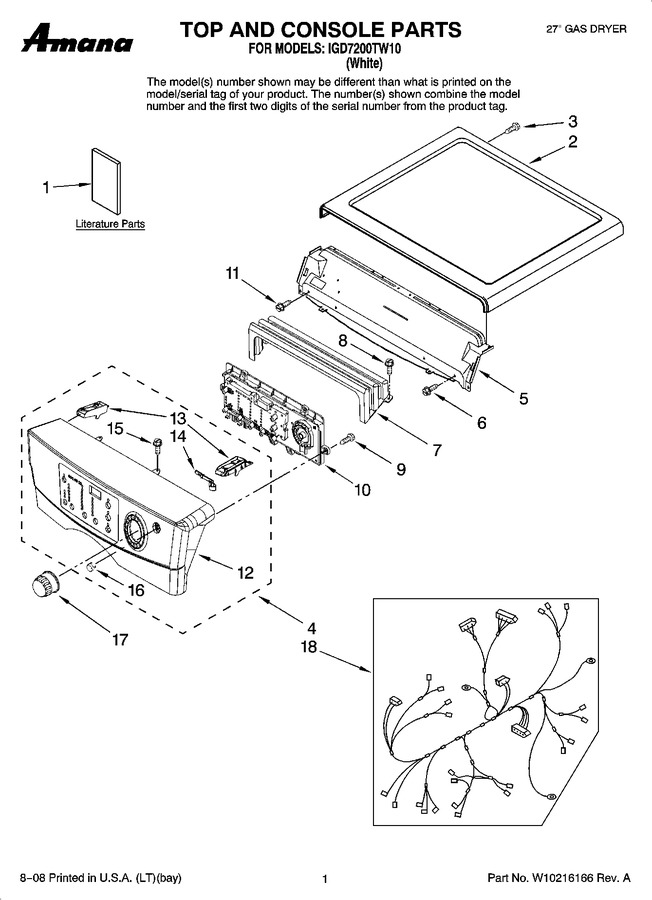

Diagram for IGD7200TW10
