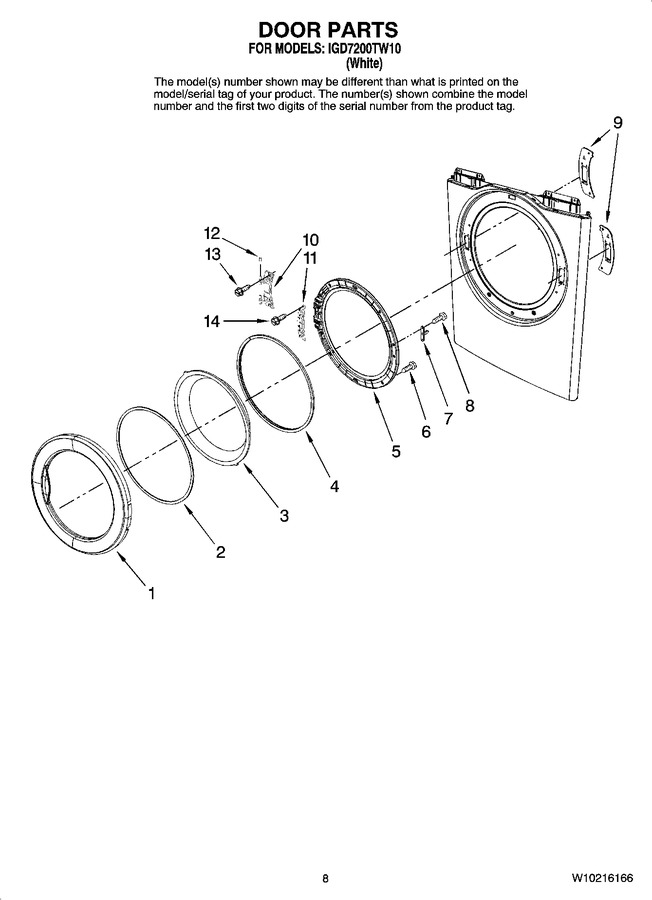

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35001235		Door-outer Ring				$ 135.39
2	35001236		Door-safety				$ 98.42
3	555555		Door-glass   (Replaces: 35001182)				$ 151.94
4	35001250		Seal-door				$ 95.43
5	W10177441		Holder-glass		Appelez-nous	-
6	6002-001286		Seal, Window				$ 0.85
7	35001111		Door-catch				$ 16.29
8	6002-000475		Screw-tapping				$ 0.85
9	35001129		Bracket-hinge (heater)		Appelez-nous	-
10	W10177442		Hinge, Door		Appelez-nous	-
11	35001120		Support-hinge				$ 27.55
12	35001127		Bearing-hinge				$ 6.14
13	6001-001773		Screw-machine			Immediately	$ 2.39
14	6002-000213		Screw-tapping			Immediately	$ 0.93
NI	WP33002924		Conversion Kit (lp To Natural)   (Replaces: 306204)				$ 100.25
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	35001151		Assy-flat Wire Harness				$ 62.63
NI	35001152		Assy-wire Harness		Appelez-nous	-
NI	35001248		Assy-wire Harness		Appelez-nous	-
NI	12002643		Anchor Bracket Kit		Appelez-nous	-
NI	35001164		Assy, Wire Harness (touch Sensor)				$ 24.91
NI	MAL9000AXX		Conversion Kit (gas To Lp)   (Replaces: Y306195)				$ 72.26
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
