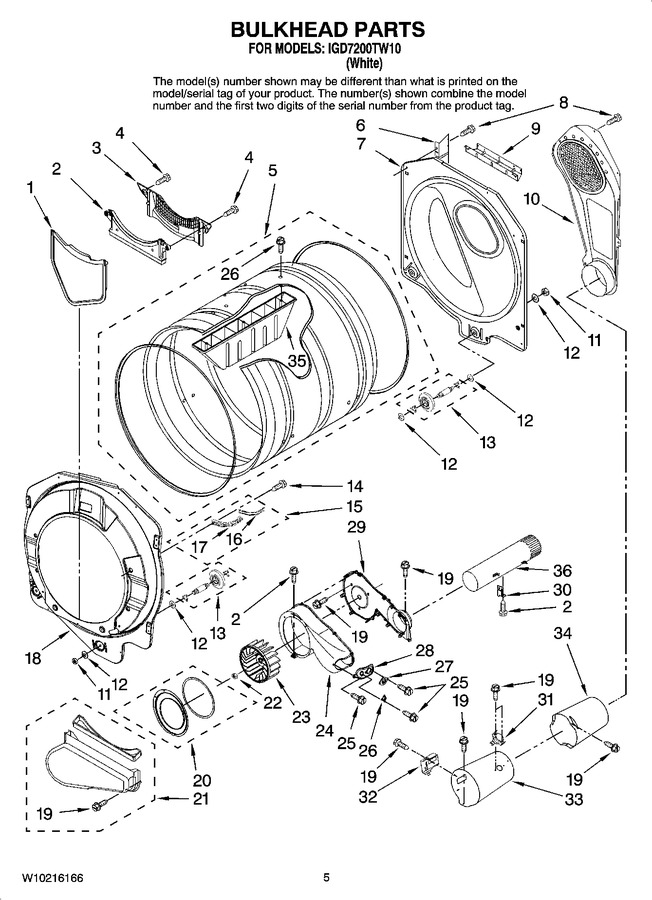

03 - Bulkhead Parts


04 - Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10177426		Screen, Lint		Appelez-nous	-
2	555555		Housing, Outlet   (Replaces: 35001144)				$ 151.94
3	35001243		Grille-outlet		Appelez-nous	-
4	34001214		Screw-tapping		Appelez-nous	-
5	W10177409		Drum-assembly Complete				$ 305.18
6	35001146		Channel-bracket Rear Bulkhead				$ 30.77
7	W10177410		Bulkhead, Rear		Appelez-nous	-
8	6002-000239		Screw-tapping			Immediately	$ 1.66
9	35001145		Bracket, Upper Rear Bulkhead		Appelez-nous	-
10	35001240		Assembly, Air-duct		Appelez-nous	-
11	23001661		Nut-hex   (Replaces: 35001132)				$ 15.61
12	DC60-60060A		Washer, Support   (Replaces: 35001133)				$ 3.23
13	WPW10177428		Assembly, Roller-support   (Replaces: W10177428)			Immediately	$ 61.65
14	6002-000132		Screw-tapping		Appelez-nous	-
15	35001245		Assembly, Guide-sensor				$ 67.85
16	35001241		Plate-sensor				$ 27.95
17	35001242		Guide-sensor				$ 29.65
18	35001224		Bulkhead-front		Appelez-nous	-
19	6002-00231		Screw-tapping		Appelez-nous	-
20	35001246		Assembly, Cover-plate		Appelez-nous	-
21	35001140		Assembly, Lint Duct		Appelez-nous	-
22	35001079		Nut-inch				$ 11.48
23	35001220		Wheel- Blower				$ 62.00
24	555555		Housing-blower   (Replaces: 35001089)				$ 151.94
25	6002-000470		Screw-tapping				$ 0.85
26	WP35001087		Thermostat   (Replaces: 35001087)			Immediately	$ 59.90
27	35001191		Thermister				$ 46.43
28	35001105		Bracket-thermister				$ 38.82
29	35001088		Blower-housing Rear		Appelez-nous	-
30	35001155		Clip-exhaust		Appelez-nous	-
31	35001092		Thermostat				$ 55.89
32	WP338906		Sensor-radiant   (Replaces: 35001096)			Immediately	$ 46.72
33	35001225		Duct-cone (f)		Appelez-nous	-
34	35001249		Duct-cone (b)		Appelez-nous	-
35	35001131		Baffle-drum (3)				$ 16.73
36	34001159		Pipe-exhaust		Appelez-nous	-
