01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

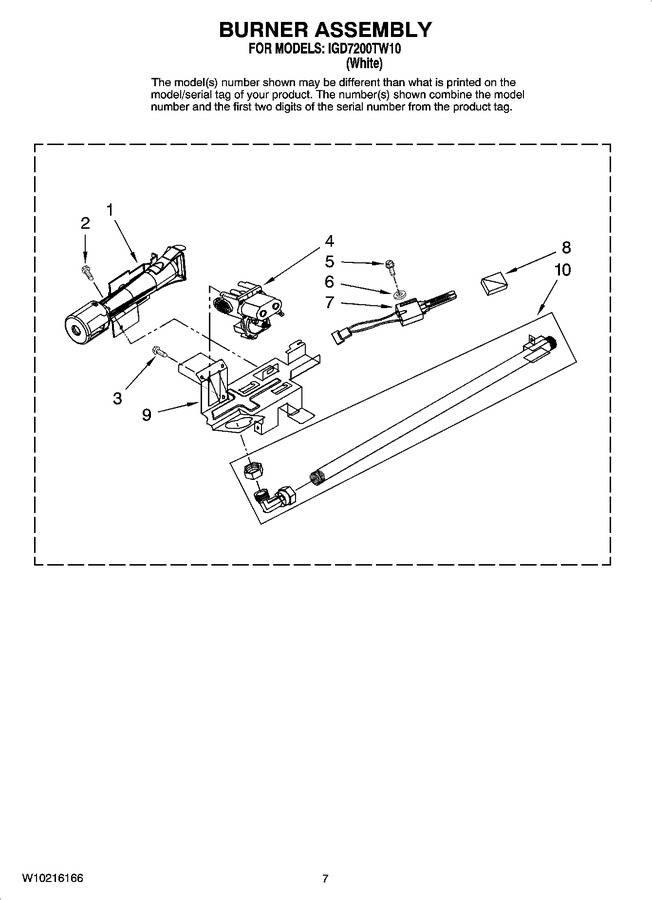

04 - Burner Assembly
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35001095 | Tube-burner |
|
- | |||||
| 2 | 6009-001476 | Screw-hex |
|
$ 1.66 | |||||
| 3 | 6006-001174 | Screw-tapping |
|
$ 0.85 | |||||
| 4 | 35001190 | Valve-gas |
|
$ 266.06 | |||||
| 5 | 6002-000524 | Screw-tapping |
|
$ 15.51 | |||||
| 6 | 6021-001130 | Nut-circular |
|
- | |||||
| 7 | WP33002789 | Heater-ignitor (Replaces: 33002789) |
|
Immediately | $ 80.85 | ||||
| 8 | 35001117 | Absorber-ignitor |
|
- | |||||
| 9 | 35001103 | Bracket-valve |
|
- | |||||
| 10 | 35001093 | Pipe-assembly |
|
- |
