SELECT A DIAGRAM

Diagram for 01 - Oven, Literature
01 - Oven, Literature

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Oven Door
03 - Oven Door

Diagram for 04 - Latch
04 - Latch

Diagram for 05 - Internal Oven
05 - Internal Oven

Diagram for 06 - Cabinet And Stirrer
06 - Cabinet And Stirrer

Diagram for 07 - Microwave Door
07 - Microwave Door

Diagram for 08 - Microwave Compartment
08 - Microwave Compartment

Diagram for 09 - Top Venting, Optional
09 - Top Venting, Optional


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4450356 Gasket Appelez-nous -
3 4452243 Microcomputer Appelez-nous -
3 WP4449745 Screw   (Replaces: 4449745) Special Order $ 6.74

10 4452035 Control Panel Assy W/membrane Switch (black Model) Appelez-nous -
10 4452036 Control Panel Assy W/membrane Switch (white Model) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

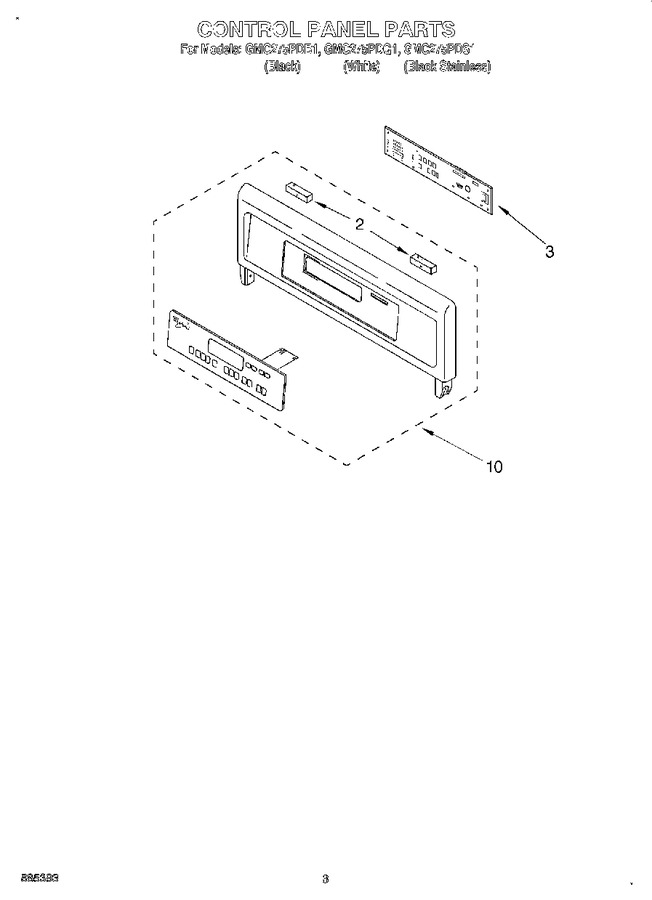

Diagram for GMC275PDQ1
