Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

1 4451759 Vent, Exhaust Special Order $ 90.01

2 4455178 Elbow, Vent-top   (Replaces: 4451438) Special Order $ 13.30

3 4455177 Elbow, Vent Bottom   (Replaces: 4451752) Special Order $ 9.77

9 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

9 4450407 Baffle, Rear Appelez-nous -
10 4451424 Latch Assembly Special Order $ 149.58

11 4451663 Solenoid Appelez-nous -
12 4451422 Micro Switch N.c. Appelez-nous -
13 4451426 Microswitch Appelez-nous -
14 4451537 Spring, Leaf Appelez-nous -
14 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

16 WPW10016550 Blower   (Replaces: 4451744) In-Stock Immediately $ 255.27

21 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

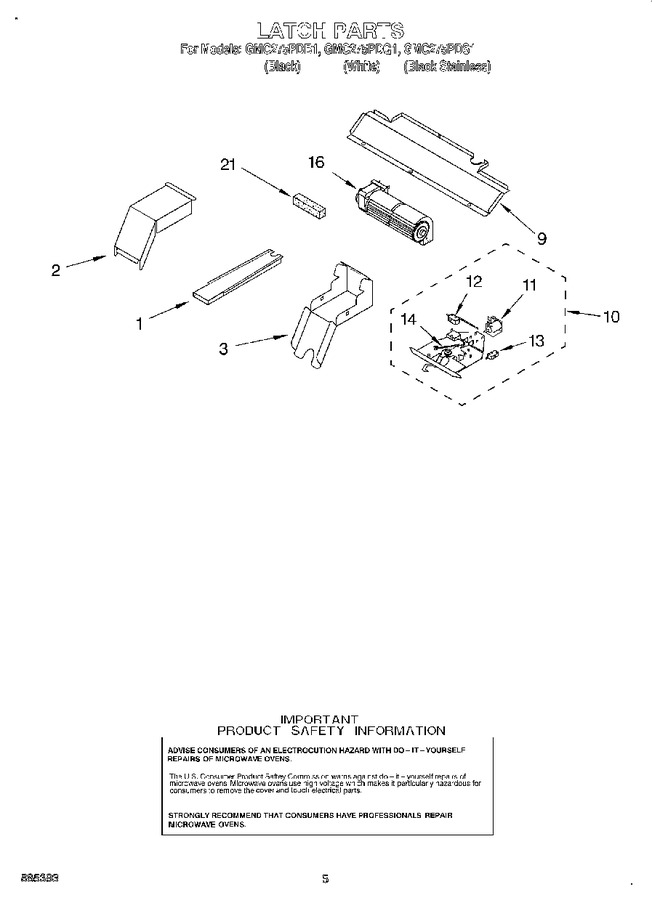

Diagram for GMC275PDQ1
