Diagram # Part Number Description Series Availability Ships Price Add to Cart
5 4450404 Support Rails (right Side) Appelez-nous -
5 4450405 Support Rails (left Side) Appelez-nous -
5 WP4449809 Support Rails (screw)   (Replaces: 4449809) In-Stock Immediately $ 6.47

11 4449702 Rear Channel Appelez-nous -
11 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

11 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80


    View Diagram in Separate Window     Print Icon   Print Part List

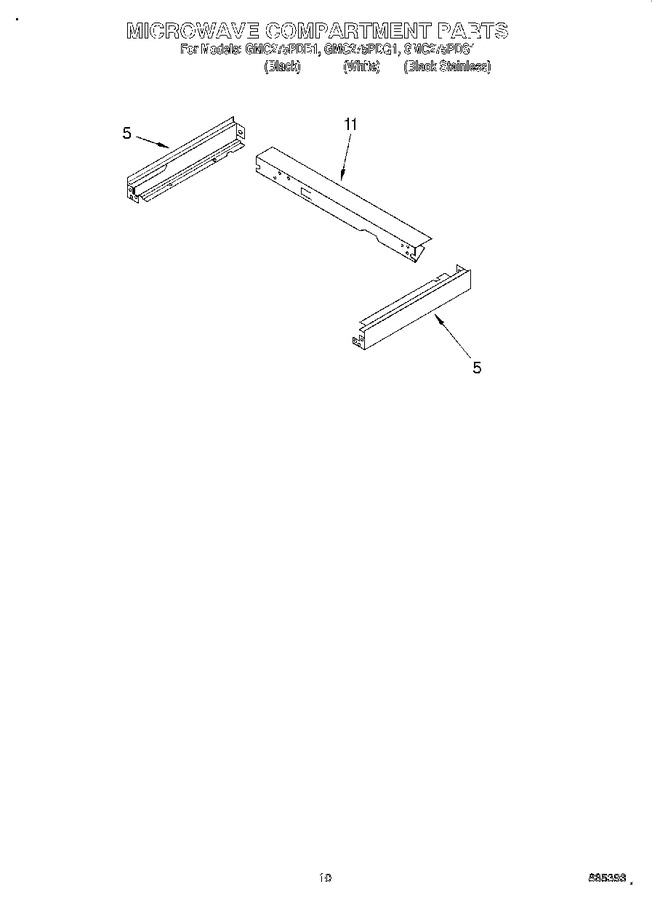

Diagram for GMC275PDQ1
