SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Latch


05 - Internal Oven

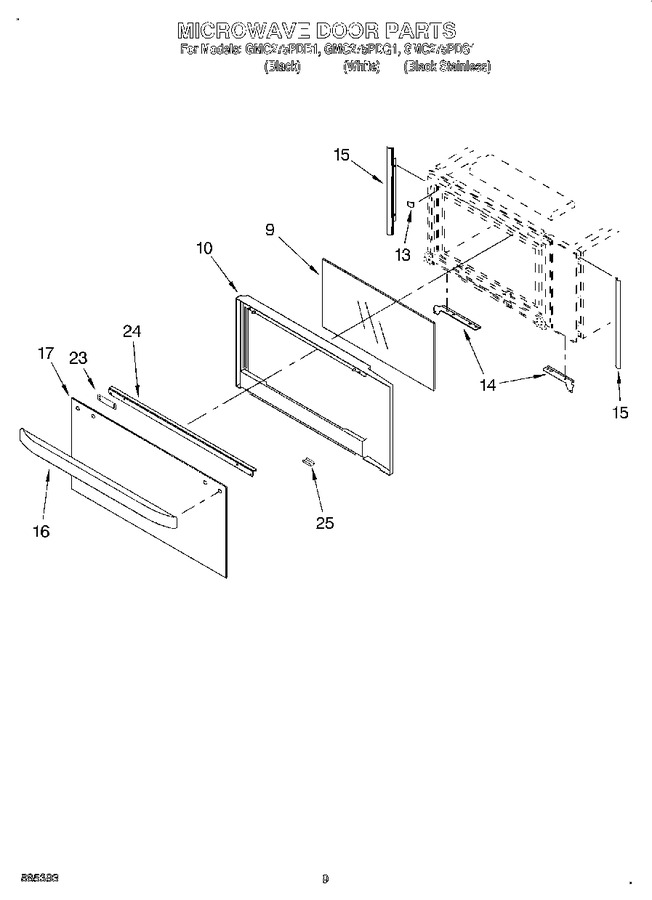

06 - Cabinet And Stirrer


07 - Microwave Door


08 - Microwave Compartment


09 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	4450834		Glass, Middle		Appelez-nous	-
10	4450945		Frame, Door		Appelez-nous	-
13	4450265		Tape, Foam		Appelez-nous	-
14	4449141		Bracket, Mounting (right Side)				$ 31.33
14	4449142		Bracket, Mounting (left Side)				$ 52.12
14	WP4449809		Bracket, Mounting (screw)   (Replaces: 4449809)			Immediately	$ 6.47
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4449083		Filler, Side				$ 36.44
16	4448405		Handle, Door (black Model)		Appelez-nous	-
16	4448406		Handle, Door (white Model)		Appelez-nous	-
17	4451219		Glass, Outer (white Model)				$ 140.84
17	4450379		Glass, Outer (black Model)		Appelez-nous	-
23	4451055		Spacer		Appelez-nous	-
24	4450960		Bracket, Handle		Appelez-nous	-
24	W10276642		Screw   (Replaces: 4451040)				$ 5.49
25	4450864		Retainer, Glass-clip (white Model)		Appelez-nous	-
25	4450863		Retainer, Glass-clip (black Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
