SELECT A DIAGRAM

01 - Oven Parts

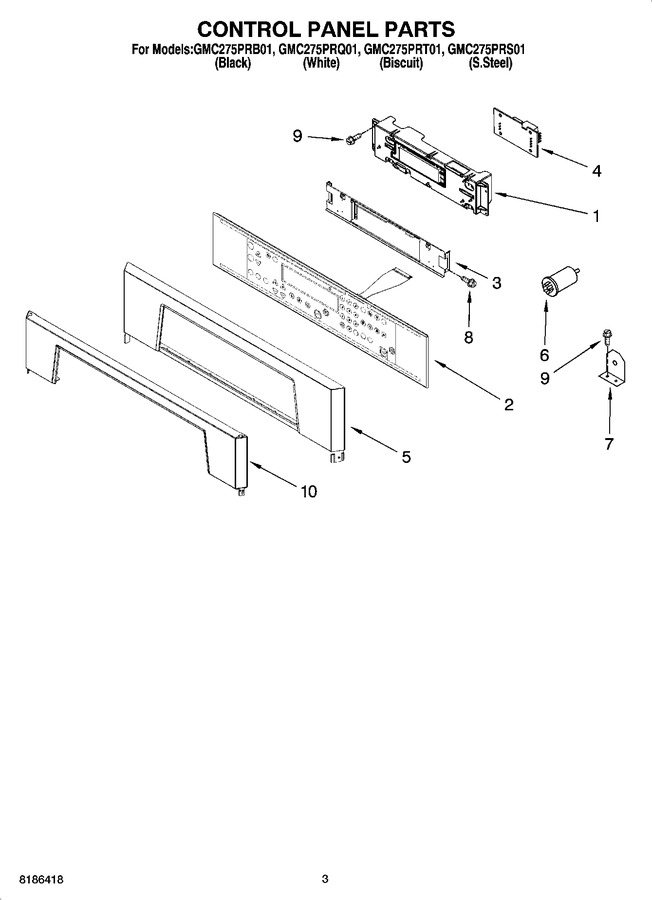

02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303819		Assy, Control		Appelez-nous	-
2	8303949		Assy, Switch (white Model)		Appelez-nous	-
2	8303950		Assy, Switch (biscuit Model)		Appelez-nous	-
2	8303948		Assy, Switch (black & Steel Mdl)		Appelez-nous	-
3	8304162		Control, Bracket		Appelez-nous	-
4	8301848		Board, Mtrzd Latch				$ 184.23
5	8302845		Control Panel (white Model)				$ 114.38
5	8302846		Control Panel (biscuit Model)				$ 107.51
5	8302844		Control Panel (black Model)				$ 119.18
6	4451592		Filter				$ 35.89
7	4451632		Bracket, Filter		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
10	8302878		Trim-panel (use On S.steel Model Only)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
