SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts

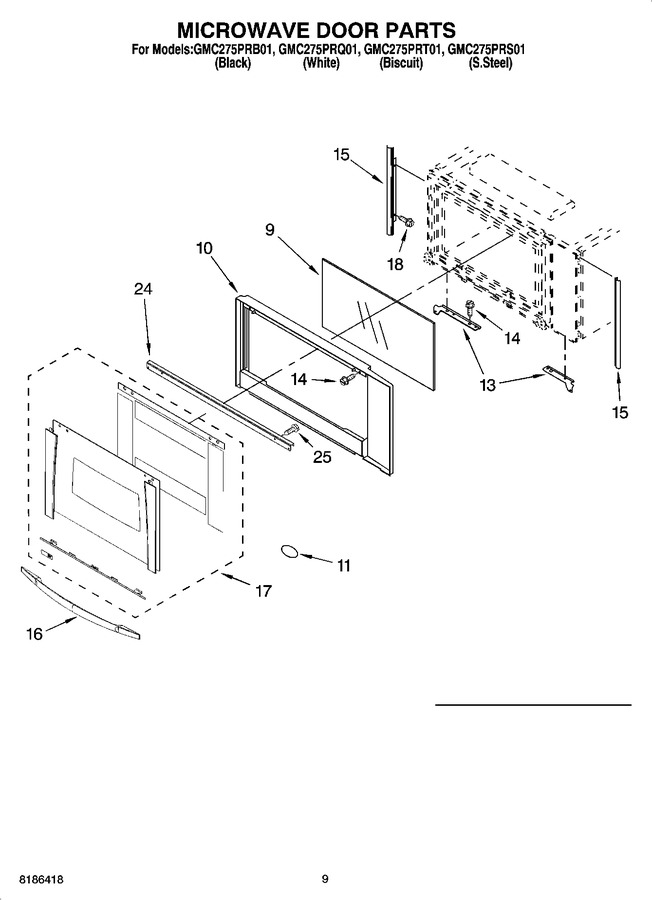

07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	4450834		Glass, Middle		Appelez-nous	-
10	8303555		Frame, Door				$ 118.65
11	8303810		Name Plate		Appelez-nous	-
13	4449141		Bracket, Mounting (right Side)				$ 31.33
13	4449142		Bracket, Mounting (left Side)				$ 52.12
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4449083		Filler, Side				$ 36.44
16	8302812		Handle, Door (biscuit Model)		Appelez-nous	-
16	8302810		Handle, Door (black Model)		Appelez-nous	-
16	8302811		Handle, Door (white Model)		Appelez-nous	-
16	8303163		Handle, Door (s.steel Model)		Appelez-nous	-
17	8303246		Glass, Outer (black Stainless)		Appelez-nous	-
17	8303262		Glass, Outer (black Model)		Appelez-nous	-
17	8303270		Glass, Outer (white Model)		Appelez-nous	-
17	8303276		Glass, Outer (biscuit Model)		Appelez-nous	-
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
24	8303168		Bracket, Handle		Appelez-nous	-
25	W10276642		Screw   (Replaces: 4451040)				$ 5.49
