SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts

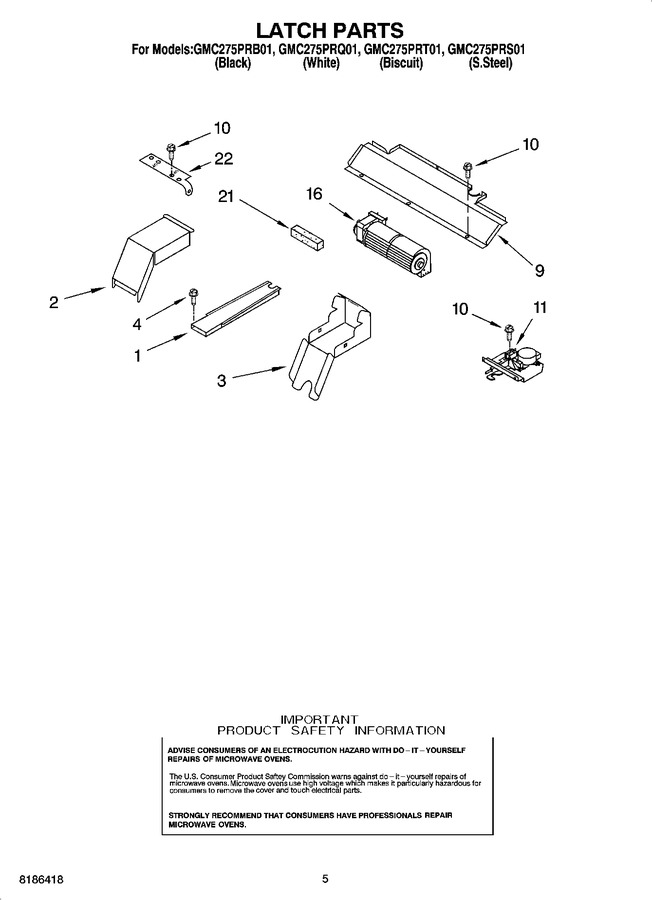

04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 90.01
2	4455178		Elbow, Vent- Top				$ 13.30
3	4455177		Elbow, Vent- Bottom				$ 9.77
4	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
9	4450407		Baffle, Rear		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
11	WP9760889		Latch, Motorized   (Replaces: 9759525)			Immediately	$ 295.79
16	WPW10016550		Blower   (Replaces: 4452003)			Immediately	$ 255.27
21	W10491987		Seal, Foam   (Replaces: 4451758)			Immediately	$ 6.98
22	4455191		Plate, Blower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
