SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

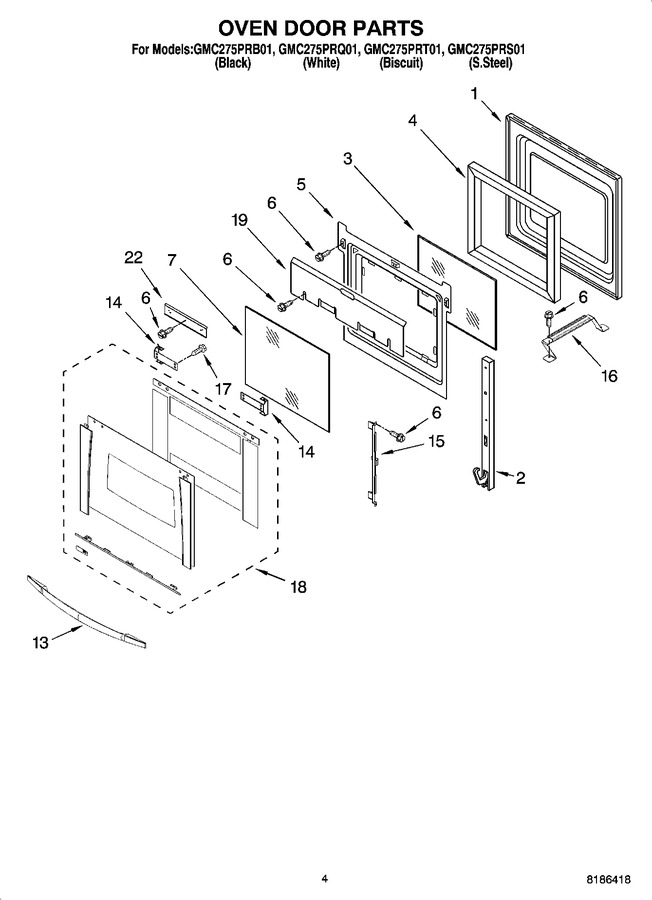

03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Door Liner				$ 128.78
2	WP9760576		Hinge, Door (l.hand (clear))   (Replaces: 9760576)			Immediately	$ 50.81
2	WP9760575		Hinge, Door (r.hand (clear))   (Replaces: 9760575)			Immediately	$ 58.11
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	4457131		Retainer, Glass				$ 31.95
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	9759224		Glass, Inner				$ 81.28
13	8303163		Door Handle (s.steel)		Appelez-nous	-
13	8302810		Door Handle (black Model)		Appelez-nous	-
13	8302811		Door Handle (white Model)		Appelez-nous	-
13	8302812		Door Handle (biscuit Model)		Appelez-nous	-
14	8303166		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket (3rdglass)				$ 36.30
17	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
18	8303309		Assy., Door Glass (biscuit Model)		Appelez-nous	-
18	8303287		Assy., Door Glass (s.steel Model)		Appelez-nous	-
18	8303299		Assy., Door Glass (black Model)		Appelez-nous	-
18	8303305		Assy., Door Glass (white Model)		Appelez-nous	-
19	4457102		Shield, Heat				$ 31.70
22	4457113		Shield, Heat (bottom)				$ 33.29

    View Diagram in Separate Window       Print Part List
