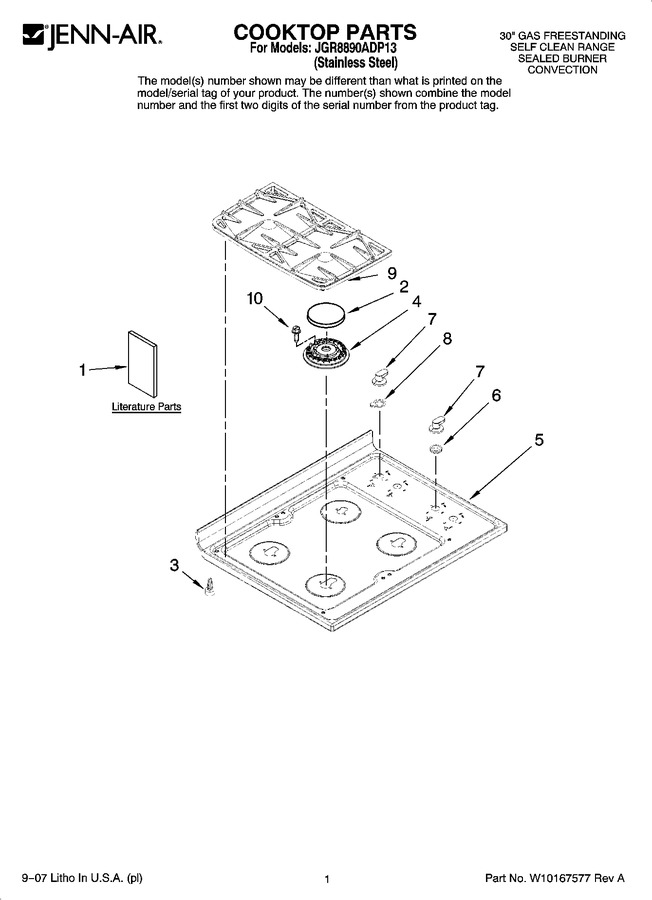

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10163152 | Installation Instructions |
|
- | |||||
| 1 | 8113P620-60 | Owners Manual |
|
- | |||||
| 2 | 74007750 | Cap, Burner (lf-ex-lg) |
|
- | |||||
| 2 | 74010189 | Cap, Burner (lr & Rf-med) |
|
$ 47.93 | |||||
| 2 | WP8284669 | Cap, Burner (rr-sm) (Replaces: 74007748) |
|
Immediately | $ 64.79 | ||||
| 3 | W11189172 | Glide, Main Top (Replaces: 74004558) |
|
Immediately | $ 15.09 | ||||
| 4 | WPW10406283 | Burner (lr & Rf) (Replaces: 74009900) |
|
$ 66.87 | |||||
| 4 | WPW10406878 | Burner (lf) (Replaces: 74007413) |
|
Immediately | $ 92.12 | ||||
| 4 | WPW10406243 | Burner (rr) (Replaces: 74007411) |
|
Immediately | $ 33.50 | ||||
| 5 | 74011885 | Cooktop (blk) |
|
- | |||||
| 6 | WP74005934 | Grommet, Knob (3) (rf,lf, & Lr) (Replaces: 74005934) |
|
$ 7.66 | |||||
| 7 | 74011886 | Knob, Control (4) |
|
- | |||||
| 8 | 74007368 | Grommet, Knob (1) (rr) |
|
$ 6.11 | |||||
| 9 | 74011889 | Grate, Burner (2) (incl. Bumpers) |
|
- | |||||
| 10 | WP3368921 | Screw (8) (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 |
