SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts

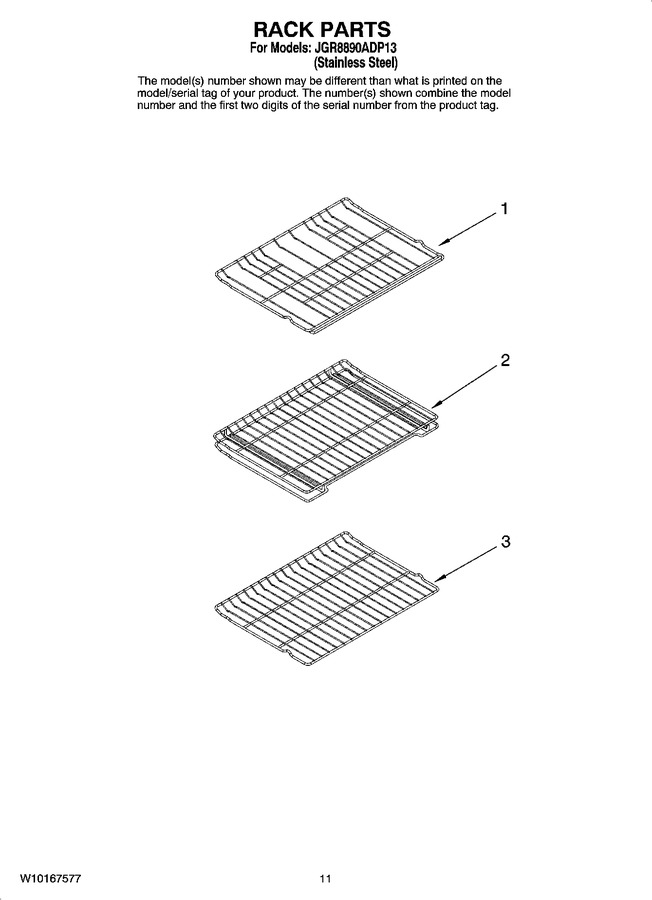

07 - Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10273816		Rack, Upper Oven   (Replaces: 74004578)				$ 144.76
2	74005218		Rack, Telescoping		Appelez-nous	-
3	74011813		Rack, Lwr Oven (2)		Appelez-nous	-
NI	242828		Wire, Black 12 Ga. 150 C		Appelez-nous	-
NI	242831		Wire, Red 14 Ga. 200 C				$ 342.23
NI	242827		Wire, Yellow 14 Ga. 150 C		Appelez-nous	-
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
NI	261582		Grease		Appelez-nous	-
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 44.36
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)			Immediately	$ 51.34
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 80.69
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	799340		Paint, Bulk (1 Qt.) (black (uncut)		Appelez-nous	-
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	74011294		Harness, Gas		Appelez-nous	-
NI	74009965		Harness, Side Mount Lock				$ 71.40
NI	74010059		Harness, Sensor		Appelez-nous	-
NI	74007455		Harness, Spark		Appelez-nous	-
NI	74009975		Harness, Door Position		Appelez-nous	-
NI	8019P026-60		Clip, Harness   (Replaces: 74006784)		Appelez-nous	-
NI	7101P287-60		Screw, Ground				$ 12.03
NI	8019P013-60		Clip, Wire   (Replaces: 74006811)				$ 13.46
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	WPW10281322		Blocks, Bare Wire Adapter (kit Of 3)   (Replaces: 74008298)				$ 7.61
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	242821		Wire, Blue 14 Ga. 150 C		Appelez-nous	-
NI	242822		Wire, Brown 14 Ga. 150 C		Appelez-nous	-
NI	242830		Wire, Brown 14 Ga. 200 C		Appelez-nous	-
NI	242823		Wire, Green 14 Ga. 150 C		Appelez-nous	-
NI	242824		Wire, Orange 14 Ga. 150 C		Appelez-nous	-
NI	242825		Wire, Red 14 Ga. 150 C		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
