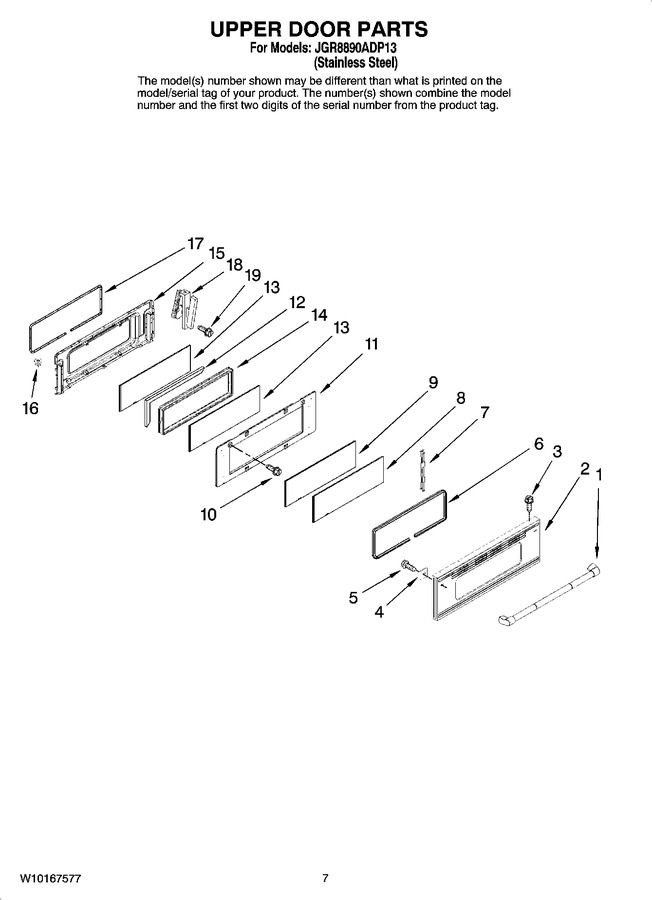

05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7701P475-60		Handle, Door   (Replaces: 74008500)				$ 251.94
2	74011888		Panel, Door		Appelez-nous	-
3	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
4	74010785		Plate, Back (2) (handle Mtg.)		Appelez-nous	-
5	74011751		Screw		Appelez-nous	-
6	7201P017-60		Gasket, Window				$ 52.69
7	74004896		Retainer, Glass Support (2)		Appelez-nous	-
8	74010194		Glass, Outer Door		Appelez-nous	-
9	74004691		Glass, Inner Door				$ 120.18
10	W11233072		Screw   (Replaces: 74002979)			Immediately	$ 12.62
11	74009976		Baffle, Door		Appelez-nous	-
12	74004569		Insulation (2)		Appelez-nous	-
13	74004566		Glass, Inner (2)				$ 83.85
14	74004567		Frame, Glass		Appelez-nous	-
15	74004564		Liner, Door		Appelez-nous	-
16	WP74001574		Nut, Snap (2)   (Replaces: 74001574)			Immediately	$ 9.91
17	WP7201P091-60		Gasket, Door   (Replaces: 74004565)				$ 137.97
18	74007830		Hinge, Door (2)		Appelez-nous	-
19	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
