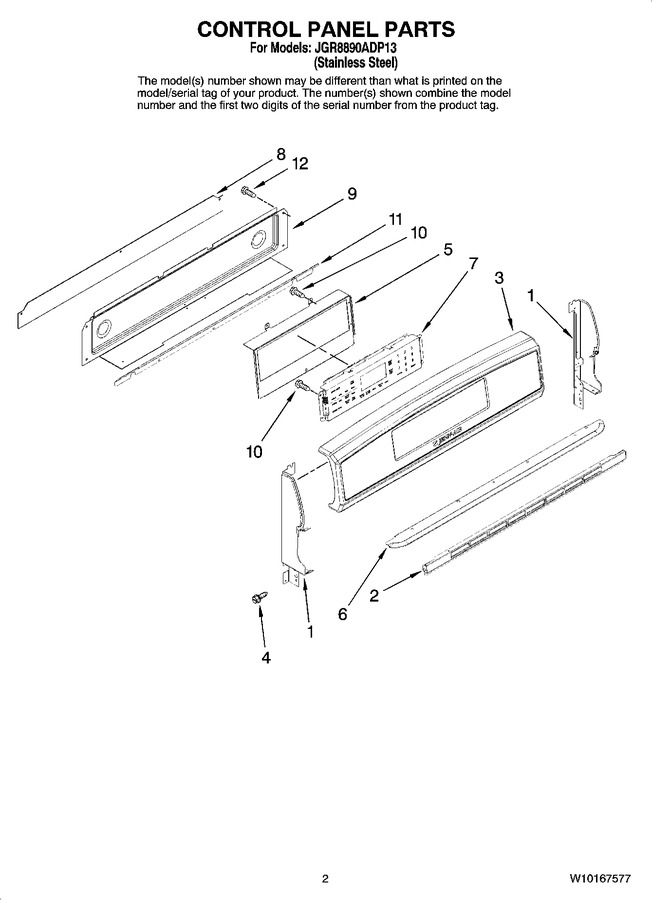

02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010201		Support, Backguard (right)		Appelez-nous	-
1	74010202		Support, Backguard (left)		Appelez-nous	-
2	74009797		Trim, Vent		Appelez-nous	-
3	W10163203		Panel, Control (incl. Overlay)		Appelez-nous	-
4	WP98008545		Screw   (Replaces: 74009537)				$ 15.94
5	W10163277		Bracket, Control		Appelez-nous	-
6	74009800		Shield, Vent		Appelez-nous	-
7	W10163250		Control Assy. (incl. Membrane Switch)		Appelez-nous	-
8	74010084		Shield, Sight		Appelez-nous	-
9	74010983		Cover, Rear Wire		Appelez-nous	-
10	WP74003976		Screw   (Replaces: 74003976)				$ 6.47
11	74009978		Shield, Wire		Appelez-nous	-
12	WP7101P434-60		Screw   (Replaces: 71001394)				$ 6.26
