SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)

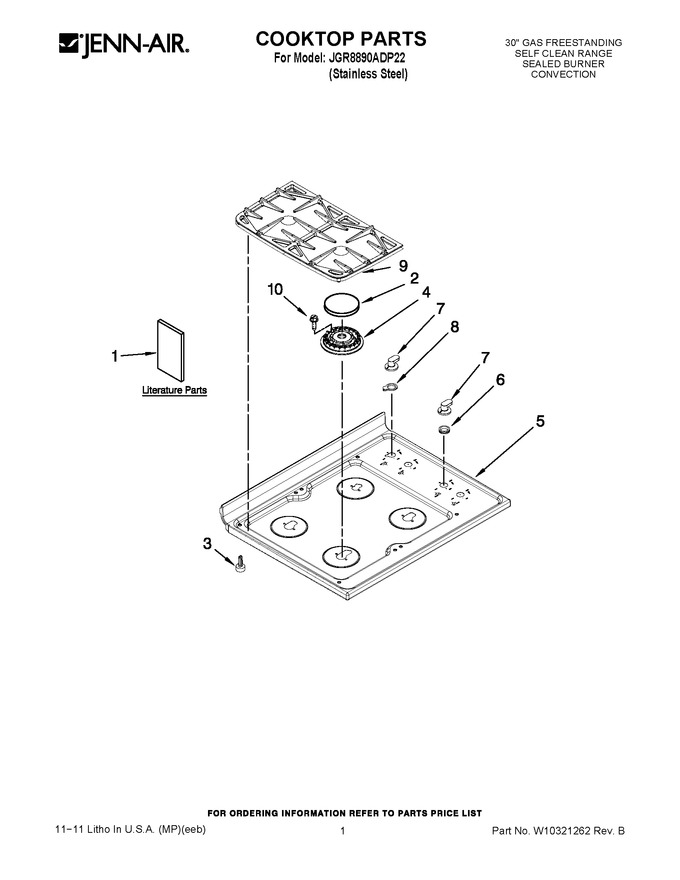

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8113P716-60		Owners Manual		Appelez-nous	-
1	8101P728-60		Installation Instructions		Appelez-nous	-
1	W10285258		Instructions, Lp Conversion		Appelez-nous	-
2	WPW10183369		Cap, Burner (lr & Rf-med)   (Replaces: W10183369)				$ 58.60
2	WPW10183368		Cap, Burner (lf-ex-lg)   (Replaces: W10183368)				$ 76.69
2	WPW10183370		Cap, Burner (rr-sm)   (Replaces: W10183370)				$ 58.28
3	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
4	WPW10406878		Burner (lf)   (Replaces: 8286183)			Immediately	$ 92.12
4	WPW10406283		Burner (lr & Rf)   (Replaces: W10194076)				$ 66.87
4	WPW10406243		Burner (rr)   (Replaces: 8286181)			Immediately	$ 33.50
5	W10194053		Cooktop (blk)		Appelez-nous	-
6	8285469		Grommet, Knob (rf,lf, & Lr)				$ 45.00
7	W10175696		Knob, Control				$ 39.24
8	8285469		Grommet, Knob (rr)				$ 45.00
9	7518P422-60		Grate, Burner (incl. Bumpers)		Appelez-nous	-
10	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42

    View Diagram in Separate Window       Print Part List
