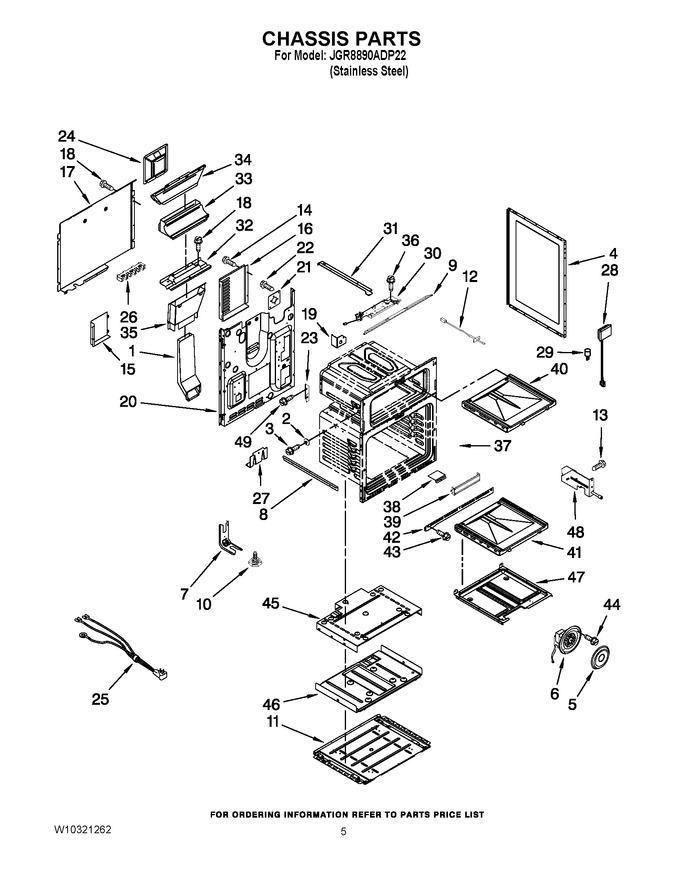

04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3826W047-45		Extension, Lower Vent		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
3	7101P618-60		Screw		Appelez-nous	-
4	2618F194-70		Panel, Side				$ 65.57
5	3605F338-19		Plate, Convection		Appelez-nous	-
6	W10206589		Fan, Convection				$ 212.64
7	WP3801F656-51		Bracket,anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
8	3823F015-51		Spacer, Side Panel (long)				$ 10.70
9	3801F924-80		Bracket, Cooktop		Appelez-nous	-
10	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 25.30
11	W10312768		Base, Gemini   (Replaces: 4003F070-51)		Appelez-nous	-
12	WP74011433		Sensor, Oven (upper Oven)   (Replaces: 7430P045-60)				$ 216.97
12	12001655		Sensor, Oven (lower Oven)   (Replaces: 7430P041-60)			Immediately	$ 41.01
13	WPY706189		Screw   (Replaces: 7101P347-60)			Immediately	$ 6.47
14	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
15	4005F741-51		Cover, Conv. Motor		Appelez-nous	-
16	4005F743-51		Cover, Bottom Wire				$ 13.91
17	W10210727		Cover, Upper Wire				$ 68.64
18	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
19	3801F705-51		Bracket (right)				$ 8.51
19	3801F706-51		Bracket (left)				$ 7.68
20	W10180198		Back, Main		Appelez-nous	-
21	3807F647-45		Plate, Broil Fitting		Appelez-nous	-
22	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
23	3807F644-45		Support, Upr Oven (left)		Appelez-nous	-
23	3807F643-45		Support, Upr Oven (right)				$ 7.82
24	3804F270-45		Retainer, Insulation		Appelez-nous	-
25	8019P027-60		Cord, Power		Appelez-nous	-
26	7401P037-60		Block, Terminal		Appelez-nous	-
27	3807F580-51		Support, Lwr Oven		Appelez-nous	-
28	7407P179-60		Light Assy.		Appelez-nous	-
29	WP74009925		Bulb, Light   (Replaces: 899138-001)			Immediately	$ 20.37
30	74007429		Latch, Door Lock   (Replaces: 8002P077-60)				$ 319.39
31	W10283688		Bottom, Burner Box (right)		Appelez-nous	-
31	W10283722		Bottom, Burner Box (left)		Appelez-nous	-
32	3601F321-50		Baffle, Vent Seal		Appelez-nous	-
33	3826W042-45		Extension, Upper Vent		Appelez-nous	-
34	4022W055-45		Flue Assy., Upper		Appelez-nous	-
35	3826W052-45		Flue Assy., Lower		Appelez-nous	-
36	74003975		Screw   (Replaces: 7101P375-60)				$ 12.02
37	7212P066-60		Seal, Front Frame		Appelez-nous	-
38	4005F736-45		Cover, Burner Opening				$ 7.37
39	3601F308-19		Baffle, Lower Oven Vent		Appelez-nous	-
40	2205F055-19		Bottom, Upper Oven				$ 85.21
41	2205F051-19		Bottom, Lower Oven				$ 197.38
42	3608F088-70		Trim, Kickplate				$ 62.10
43	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
44	7101P385-60		Screw		Appelez-nous	-
45	W10283986		Cover, Bottom Insulation		Appelez-nous	-
46	3804F212-45		Retainer, Bottom Insulation		Appelez-nous	-
47	3401F090-45		Pan, Bake (upper)		Appelez-nous	-
47	3401F091-45		Pan, Bake (lower)				$ 82.36
48	WP7450P108-60		Switch, Light-assy   (Replaces: 7450P108-60)			Immediately	$ 138.24
49	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
NI	74010091		Insulation, Back (lower Oven)   (Replaces: 7002P419-60)				$ 73.67
NI	7002P415-60		Insulation, Back (upper Oven)		Appelez-nous	-
NI	7002P413-60		Insulation, Wrap (lower Oven)		Appelez-nous	-
NI	74007440		Insulation, Wrap (upper Oven)   (Replaces: 7002P310-60)				$ 130.93
