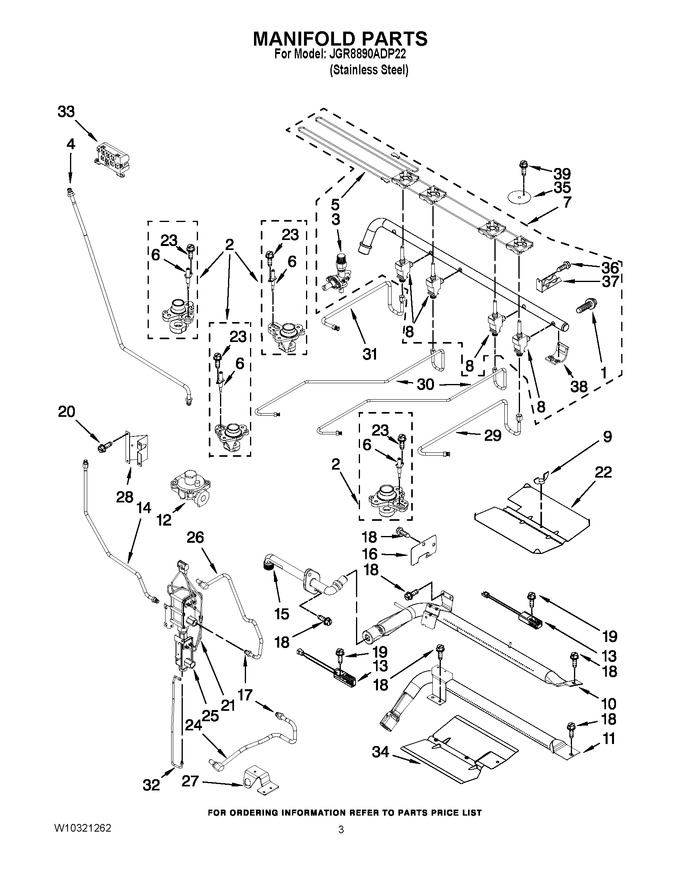

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10284377 | Screw, Valve |
|
- | |||||
| 2 | WP7527P021-60 | Holder, Orifice ((lf)) (Replaces: 7527P021-60) |
|
$ 103.25 | |||||
| 2 | WP74007961 | Holder, Orifice ((lr & Rf)) (Replaces: 7527P022-60) |
|
$ 100.54 | |||||
| 2 | WP7527P023-60 | Holder, Orifice ((rr)) (Replaces: 7527P023-60) |
|
$ 98.03 | |||||
| 3 | W10213452 | Valve, Shut Off (incl. Screw) |
|
- | |||||
| 4 | W10283143 | Tubing, Regulator To Manifold |
|
- | |||||
| 5 | W10213454 | Harness, Igniter (incl. Switches) |
|
- | |||||
| 6 | WP8523793 | Ignitor,top Burner (Replaces: 7432M126-60) |
|
Immediately | $ 36.15 | ||||
| 7 | W10296560 | Pipe, Manifold |
|
- | |||||
| 8 | W10213443 | Valve (lf) |
|
- | |||||
| 8 | W10254031 | Valve (lr & Rf) |
|
$ 113.19 | |||||
| 8 | W10213442 | Valve (rr) |
|
$ 115.42 | |||||
| 9 | 7103P030-60 | Nut |
|
$ 6.37 | |||||
| 10 | 7505P323-60 | Burner, Broiler |
|
$ 40.94 | |||||
| 11 | 7505P324-60 | Burner, Bake |
|
- | |||||
| 12 | 7510P089-60 | Regulator, Pressure |
|
- | |||||
| 13 | W11596211 | Igniter (bake) (Replaces: 7432P143-60) |
|
Immediately | $ 84.02 | ||||
| 13 | 7432P130-60 | Igniter (broil) |
|
- | |||||
| 14 | 7506P429-60 | Tubing (broiler Fitting To Valve) |
|
- | |||||
| 15 | 7507P400-60 | Fitting, Broiler |
|
- | |||||
| 16 | 4005F421-45 | Cover, Igniter |
|
- | |||||
| 17 | 74007451 | Nut, Mounting (Replaces: 7103P195-60) |
|
$ 8.05 | |||||
| 18 | W11682789 | Screw (Replaces: 7101P360-60) |
|
Immediately | $ 11.66 | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 20 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 | ||||
| 21 | 74011297 | Harness, Triple Valve (Replaces: 5171P603-60) |
|
- | |||||
| 22 | 3601F358-45 | Baffle, Broil Burner |
|
$ 218.28 | |||||
| 23 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 24 | 7507P396-60 | Tubing, Bake (incl. Orifice) (upper Oven) |
|
- | |||||
| 24 | 7507P395-60 | Tubing, Bake (incl. Orifice) (lower Oven) |
|
$ 160.07 | |||||
| 25 | WP74011290 | Valve, Bake/broil (Replaces: 7501P221-60) |
|
$ 295.97 | |||||
| 26 | 7507P400-60 | Tubing, Broil Upper Oven (incl. Orifice) |
|
- | |||||
| 27 | 3801F681-45 | Bracket, Orfice |
|
$ 7.82 | |||||
| 28 | 3801F691-51 | Bracket, Regulator |
|
- | |||||
| 29 | 7506P378-60 | Tubing (rf) |
|
$ 81.84 | |||||
| 30 | 7506P379-60 | Tubing (lr & Lf) |
|
- | |||||
| 31 | 7506P418-60 | Tubing (rr) |
|
- | |||||
| 32 | 7506P428-60 | Tubing, Manifold To Valve |
|
- | |||||
| 33 | WP7431P064-60 | Module, Spark (Replaces: 7431P064-60) |
|
$ 278.09 | |||||
| 34 | 3601F339-45 | Baffle, Bake Burner |
|
$ 98.50 | |||||
| 35 | WP74008212 | Cover, Valve Swtch (Replaces: 7724P194-60) |
|
$ 6.88 | |||||
| 36 | W10213456 | Screw, Valve |
|
- | |||||
| 37 | W10246217 | Bracket, Valve |
|
- | |||||
| 38 | W10213445 | Bracket, Manifold |
|
- | |||||
| 39 | 7101P548-60 | Screw |
|
- | |||||
| NI | W10196413 | Kit, Lp Conv. |
|
- | |||||
| NI | 5789A602-60 | Spuds, Lp Gas (kit Of 4) |
|
$ 43.94 |
