Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F734-70 Support, Backguard (left) Special Order $ 18.35

1 3807F733-70 Support, Backguard (right) Special Order $ 27.86

2 3608F121-09 Trim, Vent Special Order $ 12.99

3 2602M182-09 Panel, Control (incl. Overlay) Special Order $ 219.07

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 15.94

5 3801F926-51 Bracket, Control Appelez-nous -
6 3604F398-09 Shield, Vent Special Order $ 31.26

7 W10162916 Control Assy. (incl. Membrane Switch) Appelez-nous -
8 8036P025-60 Shield, Sight Appelez-nous -
9 4005F804-51 Cover, Rear Wire Special Order $ 30.01

10 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 6.47

11 3604F405-51 Shield, Wire Special Order $ 11.78

12 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.26

13 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 12.62

14 7101P313-60 Screw Appelez-nous -

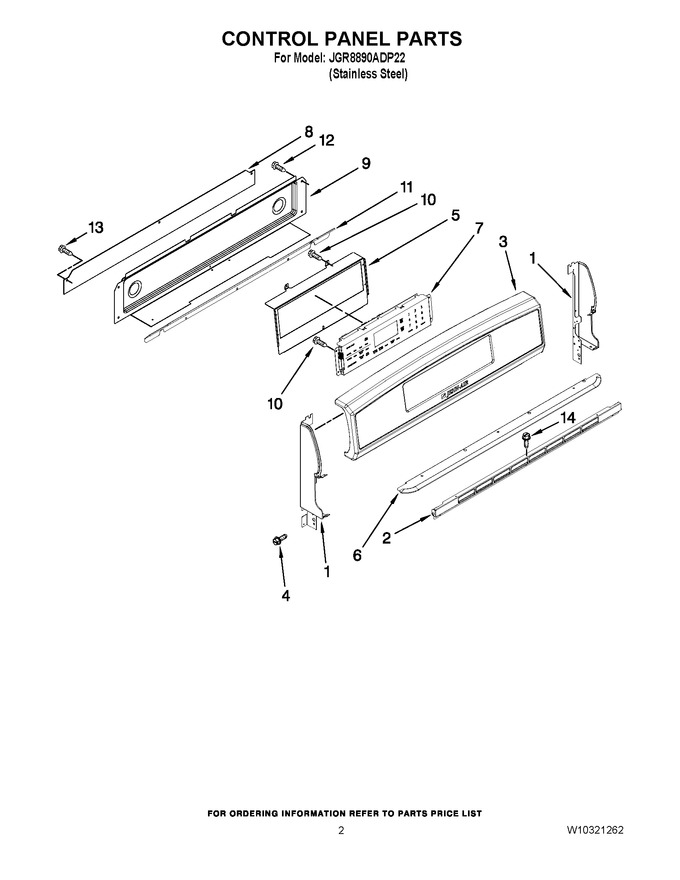

    View Diagram in Separate Window     Print Icon   Print Part List
