01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts

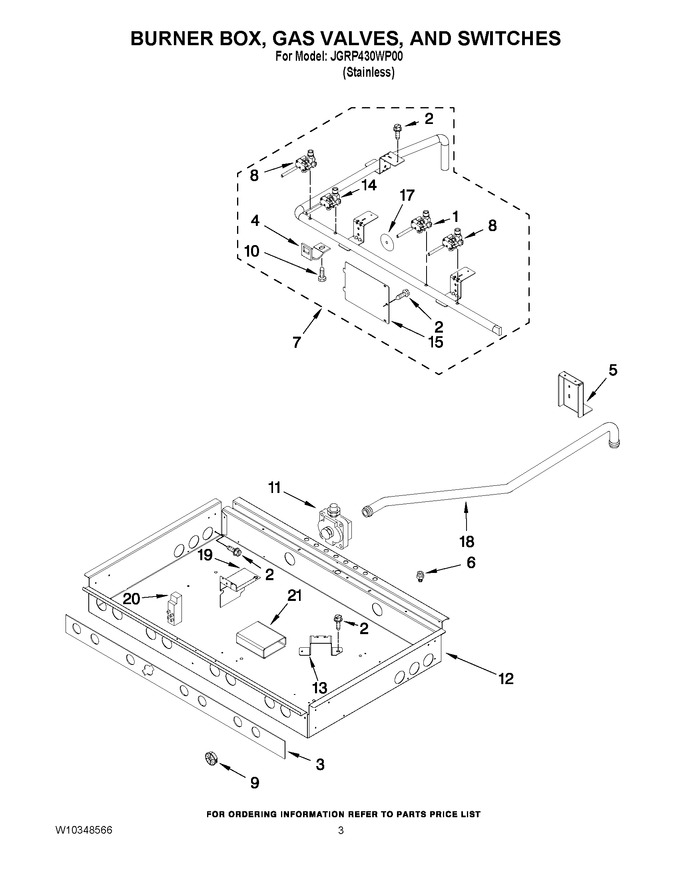

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10371235		Valve, Dual (lf)   (Replaces: W10305287)			Immediately	$ 241.57
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
3	W11706804		Insulation, Burner Box   (Replaces: W10276534)		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
6	4453115		Adapter, 1/2`` Female				$ 108.60
7	W10145506		Manifold		Appelez-nous	-
8	W10326645		Valve, Single (lr & Rf)				$ 162.52
9	W10189097		Bushing, Burner Box				$ 6.85
10	W10189140		Screw, Valve Mtg				$ 5.85
11	W11193822		Regulator,pressure   (Replaces: W10145584)				$ 255.06
12	W10272891		Burner Box		Appelez-nous	-
13	W10280796		Bracket, Burner (rr)		Appelez-nous	-
13	W10115929		Bracket, Burner (lf, Lr & Rf)		Appelez-nous	-
14	WPW10385583		Valve, Aux (rr)   (Replaces: W10305286)			Immediately	$ 284.66
15	W10115843		Cover, Ignition		Appelez-nous	-
17	W10189177		Seal, Switch Cover				$ 8.57
18	W10348600		Tube, Pressure Regulator				$ 177.62
19	W10325491		Bracket, Spark Module		Appelez-nous	-
20	WPW10475147		Spark Module   (Replaces: 7431P038-60)			Immediately	$ 214.42
21	8287102		Insulation, Spark Module		Appelez-nous	-
NI	W10145484		Tubing, Gas (rf)		Appelez-nous	-
NI	W10145481		Tubing, Gas (lf - Left)				$ 60.35
NI	W10145479		Tubing, Gas ((lr))		Appelez-nous	-
NI	W10276501		Tubing, Gas (rr)		Appelez-nous	-
NI	W10145480		Tubing, Gas (lf - Right)		Appelez-nous	-
