Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10145765 Kickplate Special Order $ 89.37

3 WPW10138054 Roller, Assembly   (Replaces: W10138054) Special Order $ 38.86

4 W10145380 Duct, Bottom Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 W10859931 Foot   (Replaces: 9760860) Special Order $ 101.59

7 W10249333 Base, Leveling Leg Special Order $ 250.47

8 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

9 WPW10250465 Panel, Side (left)   (Replaces: W10250465) Special Order $ 343.68

9 W11333303 Panel, Side (right)   (Replaces: W10250464) Special Order $ 361.21

10 W10115869 Shaft, Long In-Stock Immediately $ 93.74

11 W10115793 Shaft, Short Special Order $ 65.00

12 489504 E-ring Special Order $ 6.35

13 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 6.47

14 W10145374 Chassis, Top Appelez-nous -
15 W10145356 Chassis, Back Appelez-nous -
16 W10145371 Chassis, Bottom Appelez-nous -
17 W10269206 Chassis, Side (left) Special Order $ 201.67

17 W10269205 Chassis, Side (right) Special Order $ 201.88

18 W11239228 Valve, Dual   (Replaces: W10145680) In-Stock Immediately $ 288.82

19 W10145701 Tube, Valve Special Order $ 151.49


    View Diagram in Separate Window     Print Icon   Print Part List

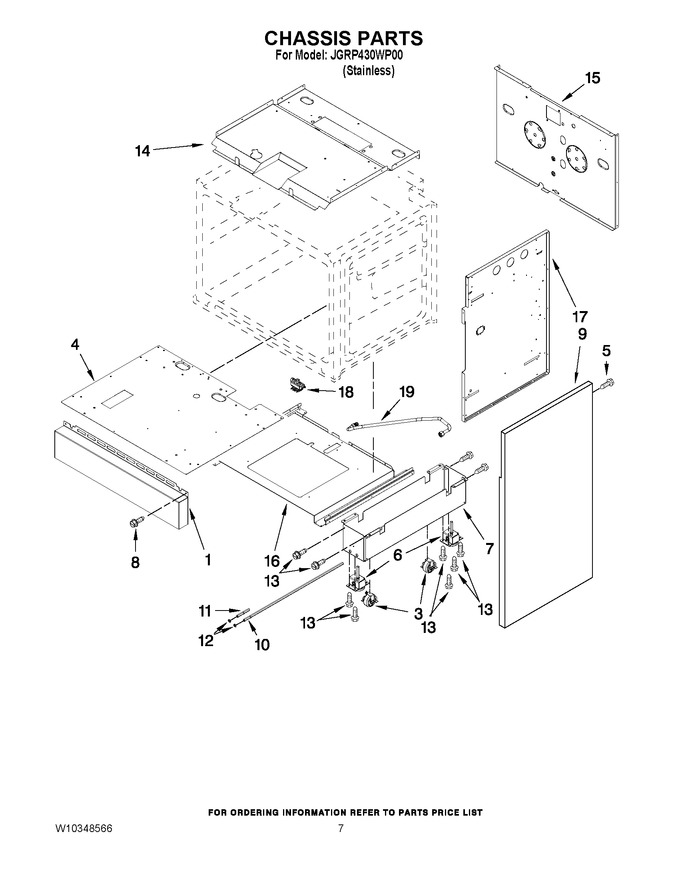

Diagram for JGRP430WP00
