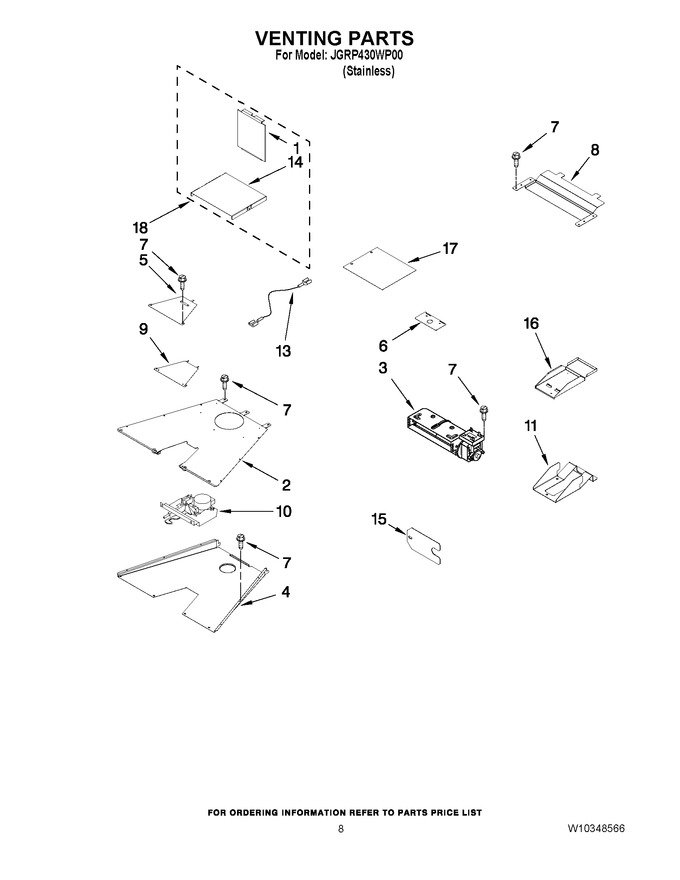

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10246087		Insulation, Chimney		Appelez-nous	-
2	W10299182		Vent, Cooling Top			Immediately	$ 129.39
3	WPW10245511		Blower   (Replaces: W10245511)			Immediately	$ 275.42
4	W10349015		Vent, Cooling Bottom			Immediately	$ 172.35
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10115855		Holder, Strain Relief		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
8	W10145748		Bracket, Blower		Appelez-nous	-
9	W10160858		Cover, Latch				$ 65.95
10	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 280.85
11	W10308039		Bracket, Bake Alignment		Appelez-nous	-
13	W10146037		Wire, Electrode				$ 28.52
14	W10246086		Retainer, Insulation Chimney		Appelez-nous	-
15	W10145381		Cover, Channel		Appelez-nous	-
16	W10249337		Support, Control		Appelez-nous	-
17	W10239444		Seal, Control		Appelez-nous	-
18	W10340579		Chimney, Box Assembly   (Replaces: W10145684)		Appelez-nous	-
