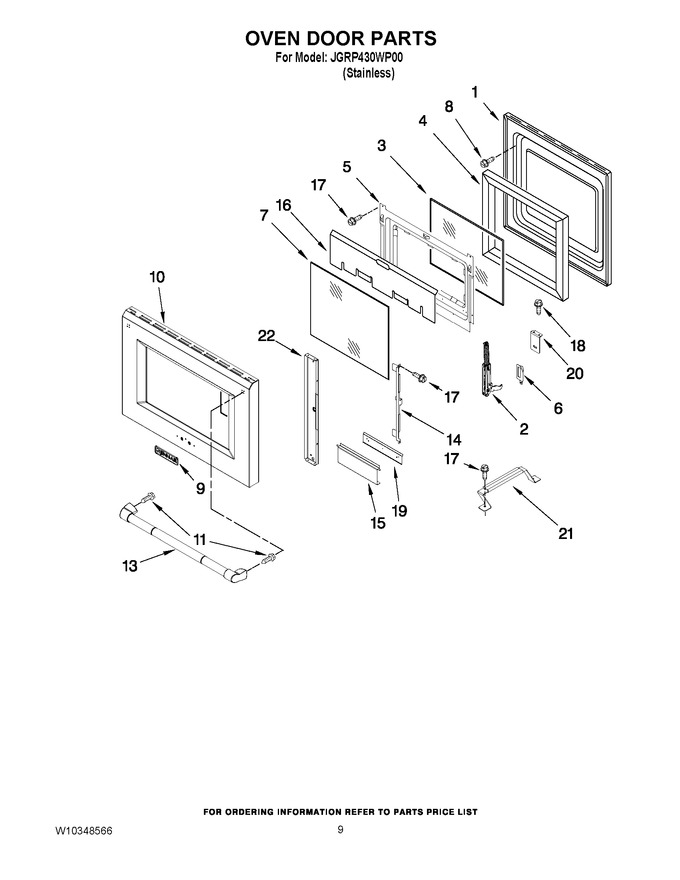

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: W10226001)				$ 317.54
2	W10782122		Hinge, Door (right)   (Replaces: W10269201)				$ 55.03
2	W10782123		Hinge, Door (left)   (Replaces: W10269202)			Immediately	$ 55.03
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	W10226002		Retainer, Glass		Appelez-nous	-
6	W10115877		Cover, Hinge (right)		Appelez-nous	-
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.47
9	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 75.89
10	W10322618		Panel, Exterior (includes Glass)				$ 282.68
11	WPW10276043		Screw   (Replaces: W10276043)				$ 6.26
13	WP7701P475-60		Door Handle   (Replaces: 7701P475-60)				$ 251.94
14	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 160.71
15	W10145763		Bracket, Center		Appelez-nous	-
16	4457104		Shield, Heat Top				$ 33.62
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
19	4457114		Shield, Heat Bottom				$ 186.68
20	W10115715		Bracket, Door Top		Appelez-nous	-
21	9759230		Bracket(3rd Glass)				$ 36.30
22	W10145761		Bracket, Side (2)		Appelez-nous	-
