View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

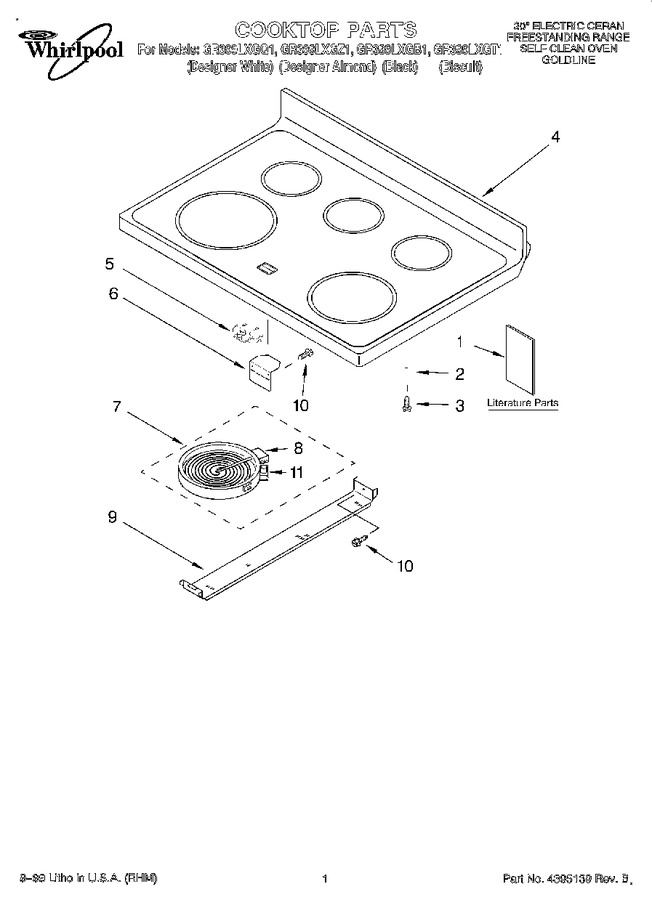

01 - Cooktop, Literature
02 - Drawer And Broiler
03 - Door
04 - Chassis
05 - Control Panel, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8053714 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8053402 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8053303 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.47 | |||||
| 4 | 8053221 | Cooktop (white) |
|
- | |||||
| 4 | 8053222 | Cooktop (almond) |
|
- | |||||
| 4 | 8053223 | Cooktop (black) |
|
- | |||||
| 4 | 8272515 | Cooktop (biscuit) |
|
- | |||||
| 5 | 8053631 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3195810 | Bracket, Ind Light |
|
- | |||||
| 7 | 8272233 | Element, Surface (includes No. 8) (100 W - Cr) |
|
- | |||||
| 7 | W10823698 | Element, Surface (includes No. 8) (1800 W - Rf) (Replaces: 8053606) |
|
Immediately | $ 175.61 | ||||
| 7 | 8053605 | Element, Surface (includes No. 8) (2500 W - Lf) |
|
- | |||||
| 7 | W10823711 | Element, Surface (includes No. 8) (1200 W - Rr) (Replaces: 8053621) |
|
Immediately | $ 183.95 | ||||
| 8 | 8053620 | Limiter, Temp. (lf, Rf, Lr, Rr) |
|
- | |||||
| 8 | 3190253 | Limiter, Temp. (cr) |
|
- | |||||
| 9 | 3196974 | Bracket, Element (1) (back Center) |
|
- | |||||
| 9 | 3196975 | Bracket, Element (2) |
|
- | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
$ 6.47 | |||||
| 11 | 8272690 | Light, Indicator (used On 8272233) |
|
- |
