SELECT A DIAGRAM
01 - Cooktop, Literature

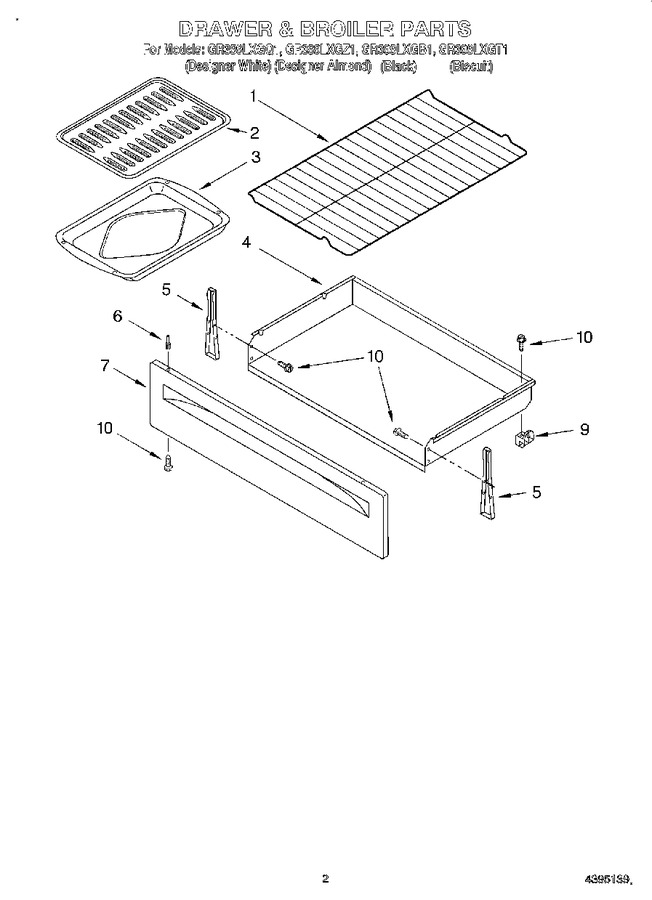

02 - Drawer And Broiler
03 - Door
04 - Chassis
05 - Control Panel, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 42.16 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 82.63 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 279.38 | |||||
| 4 | 8053342 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer (2) (Replaces: 3196816) |
|
Immediately | $ 76.24 | ||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 7 | 8053340 | Panel, Drawer Front (almond) |
|
- | |||||
| 7 | W11230488 | Panel, Drawer Front (black) (Replaces: 8053341) |
|
$ 182.09 | |||||
| 7 | W11230476 | Panel, Drawer Front (biscuit) (Replaces: 8272501) |
|
$ 176.59 | |||||
| 7 | W11219377 | Panel, Drawer Front (white) (Replaces: 8053339) |
|
$ 182.21 | |||||
| 9 | WP8053334 | Glide, Drawer (2) (Replaces: 8053334) |
|
Immediately | $ 7.06 | ||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 |
