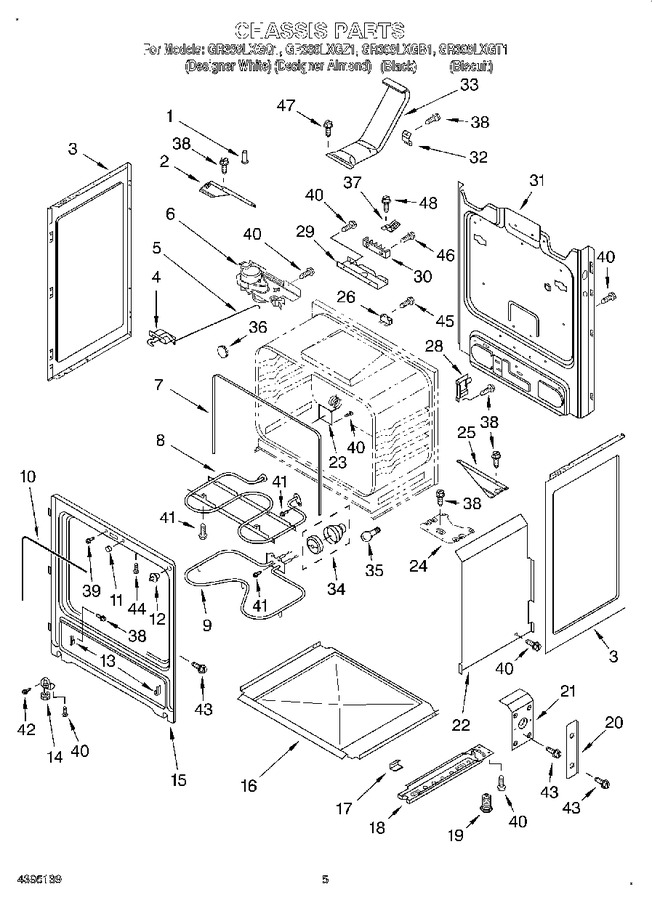

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169110		Tube, Oven Vent		Appelez-nous	-
2	3196156		Support, Corner Lr		Appelez-nous	-
3	W10162246		Panel, Side (2) (biscuit-textured)   (Replaces: 8272519)				$ 176.49
3	W11730303		Panel, Side (2) (black-textured)   (Replaces: 8053832)			Immediately	$ 148.35
3	8053831		Panel, Side (2) (almond-textured)		Appelez-nous	-
3	WPW10575396		Panel, Side (2) (white-textured)   (Replaces: 8053830)				$ 133.84
4	WP9761013		Latch, Door   (Replaces: 3196119)				$ 219.74
5	3196961		Rod, Latch		Appelez-nous	-
6	WPW10107820		Latch, Rear Ass`y   (Replaces: 3196953)				$ 265.33
7	3195737		Seal, Oven Flange		Appelez-nous	-
8	W10856603		Element, Broil   (Replaces: 8053712)			Immediately	$ 139.16
9	WPW10308477		Element, Bake   (Replaces: 8053713)			Immediately	$ 64.67
10	W11542153		Seal, Oven Door   (Replaces: 3195023)			Immediately	$ 45.18
11	W10877054		Spacer, Door   (Replaces: 3196392)			Immediately	$ 48.05
12	WP3196262		Switch, Door   (Replaces: 3196262)				$ 141.83
13	WP3195546		Glide, Drawer (2)   (Replaces: 3195546)			Immediately	$ 7.14
14	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 74.67
15	3186156		Frame, Front		Appelez-nous	-
16	WP8054068		Tray, Insulation   (Replaces: 3186145)				$ 89.45
17	3196576		Clip, Panel (6)		Appelez-nous	-
18	W11818353		Rail, Base (2)   (Replaces: 8053335)				$ 53.71
19	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 7.07
20	3196091		Shield, Outer (2)		Appelez-nous	-
21	3196092		Shield, Inner (2)		Appelez-nous	-
22	3195717		Retainer, Side (2)		Appelez-nous	-
23	3196966		Sensor, Oven		Appelez-nous	-
24	3195736		Support, Front (2)		Appelez-nous	-
25	3195987		Support, Corner Rr		Appelez-nous	-
26	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
28	W10404688		Support, Oven (2)   (Replaces: 3186116)				$ 15.17
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
30	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
31	8053508		Back, Main		Appelez-nous	-
32	3196437		Bracket, Flue		Appelez-nous	-
33	WPW10134285		Flue   (Replaces: 3195931)				$ 225.43
34	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
36	3196439		Button, Plug		Appelez-nous	-
37	3169573		Strap, Ground		Appelez-nous	-
38	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
39	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
40	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
41	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.04
42	WP98008545		Screw   (Replaces: 3196179)				$ 15.94
43	WP7101P246-60		Screw   (Replaces: 3196177)				$ 6.98
44	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
45	3196172		Screw			Immediately	$ 11.55
46	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
47	WP489491		Screw   (Replaces: 3196566)				$ 6.26
48	WPW10208653		Insulation, Wrap   (Replaces: 3195037)			Immediately	$ 49.92
48	8053915		Insulation, Vent				$ 11.20
48	W11244557		Screw, Ground   (Replaces: 3196173)				$ 12.25
48	W11311894		Insulation, Back   (Replaces: 3186148)				$ 95.48
