SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Drawer And Broiler


03 - Door


04 - Chassis


05 - Control Panel, Optional

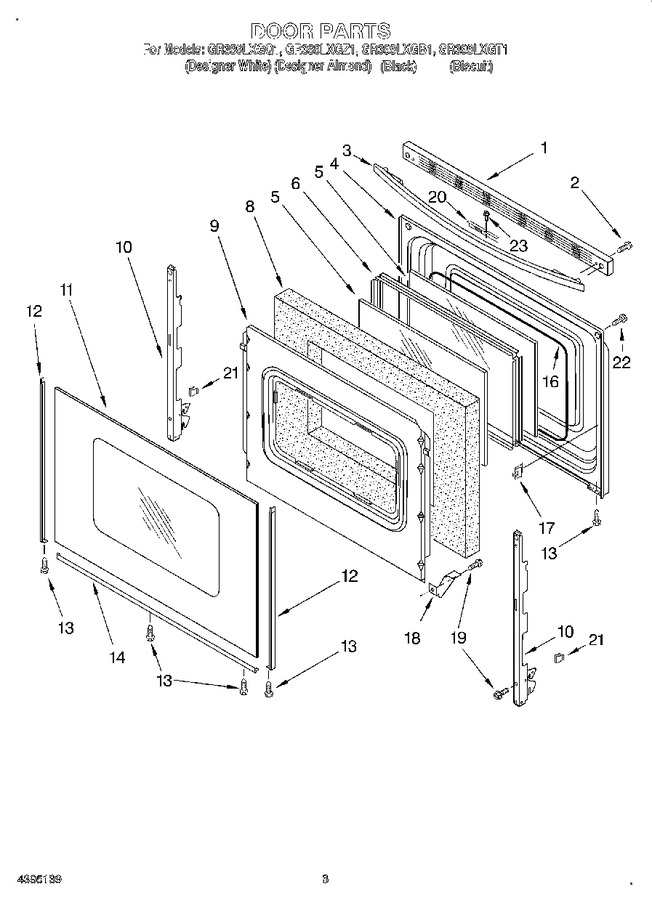

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196821		Trim, Door Top (white)		Appelez-nous	-
1	3196820		Trim, Door Top (almond)		Appelez-nous	-
1	3196819		Trim, Door Top (black)		Appelez-nous	-
1	8272494		Trim, Door Top (biscuit)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 7.82
3	WPW10202216		Handle, Door (white)   (Replaces: 3195218)				$ 317.72
3	3195921		Handle, Door (almond)		Appelez-nous	-
3	WPW10202217		Handle, Door (black)   (Replaces: 3195922)				$ 231.98
3	8272495		Handle, Door (biscuit)		Appelez-nous	-
4	3186292		Liner, Door		Appelez-nous	-
5	WP8053948		Glass, Inner (2)   (Replaces: 3186271)				$ 160.45
6	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 76.37
8	WPW10278991		Insulation, Door   (Replaces: 3186250)			Immediately	$ 86.89
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 199.17
10	WP8053807		Hinge, Door (2)   (Replaces: 8053807)				$ 81.73
11	8053482		Glass, Outer Door (almond)		Appelez-nous	-
11	8272498		Glass, Outer Door (biscuit)		Appelez-nous	-
11	WPW10118455		Glass, Outer Door (black)   (Replaces: 8053478)			Immediately	$ 285.17
11	WP8053834		Glass, Outer Door (white)   (Replaces: 8053480)				$ 250.16
12	8184860		Trim, Side (almond Right Hand)   (Replaces: 3195972)				$ 129.91
12	8184860		Trim, Side (almond Left Hand)   (Replaces: 3195975)				$ 129.91
12	8184859		Trim, Side (white Right Hand)   (Replaces: 3195971)				$ 146.49
12	8184859		Trim, Side (white Left Hand)   (Replaces: 3195974)				$ 146.49
12	8184860		Trim, Side (biscuitright Hand)   (Replaces: 8272496)				$ 129.91
12	8184860		Trim, Side (biscuit Left Hand)   (Replaces: 8272497)				$ 129.91
12	8184858		Trim, Side (black Right Hand)   (Replaces: 3195973)				$ 144.73
12	8184858		Trim, Side (black Left Hand)   (Replaces: 3195976)				$ 144.73
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
14	8184858		Trim, Lower (black)   (Replaces: 3195424)				$ 144.73
14	8184860		Trim, Lower (biscuit)   (Replaces: 8272499)				$ 129.91
14	8184859		Trim, Lower (white)   (Replaces: 3195422)				$ 146.49
14	8184860		Trim, Lower (almond)   (Replaces: 3195423)				$ 129.91
16	3195984		Seal, Window		Appelez-nous	-
17	3196025		Clip, Glass (6)				$ 20.10
18	3196794		Bracket, Window				$ 24.34
19	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
20	3195914		Bracket, Latch		Appelez-nous	-
21	3196925		Clip, Door Stop				$ 9.06
22	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.16
23	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
