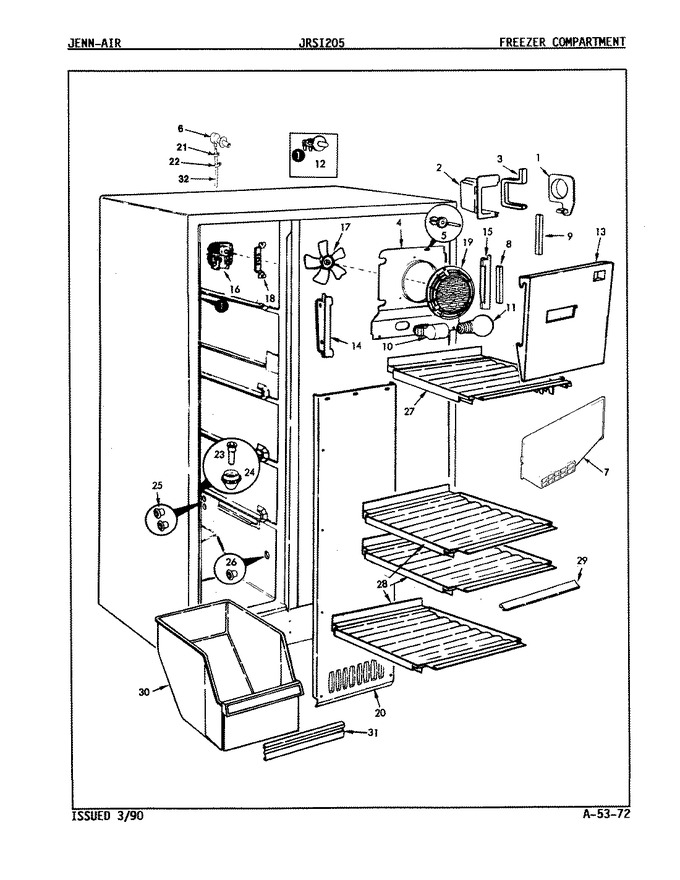

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice Maker Section
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54423-1 | Orifice | - |
|
- | ||||
| 2 | 53837-1 | Shield | - |
|
- | ||||
| 3 | 52077-10 | Seal | - |
|
- | ||||
| 4 | 68247-2 | Cover | - |
|
- | ||||
| 4 | 400015-12 | Screw | - |
|
- | ||||
| 5 | 59920-1 | Stud, Mounting Coil Cover | - |
|
- | ||||
| 6 | 68304-2 | Extension,grommet To Fill Tube | - |
|
- | ||||
| 6 | 68306-1 | Tube, Fill | - |
|
- | ||||
| 6 | 68396-1 | Grommet | - |
|
- | ||||
| 7 | 68255-1 | Air Duct | - |
|
- | ||||
| 8 | 52077-19 | Seal,upper Coil Cover To Liner | - |
|
- | ||||
| 9 | 52824-6 | Coil Seal | - |
|
- | ||||
| 10 | 29814-2 | Receptacle, Light | - |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 68123-1) | - |
|
Immediately | $ 10.17 | |||
| 12 | 65512-1 | Spacer | - |
|
- | ||||
| 12 | 56432-2 | Switch | - |
|
- | ||||
| 13 | 68246-1 | Shield, Light | - |
|
- | ||||
| 14 | 53687-2 | Support | - |
|
- | ||||
| 15 | 54424-2 | Support | - |
|
- | ||||
| 16 | 56488-4 | Motor | - |
|
- | ||||
| 17 | 52120-1 | Blade, Fan Frzr. | - |
|
- | ||||
| 18 | 64856-2 | Bracket, Fan Motor | - |
|
- | ||||
| 19 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 19 | 68253-1 | Grid, Fan | - |
|
- | ||||
| 20 | 65224-3 | Cover, Coil | - |
|
- | ||||
| 21 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | - |
|
$ 9.95 | ||||
| 22 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) | - |
|
$ 10.06 | ||||
| 23 | 26527-9 | Drain Tube | - |
|
- | ||||
| 24 | 52526-1 | Grommet | - |
|
- | ||||
| 25 | 53727-1 | Retainer, Air Tunnel | - |
|
- | ||||
| 26 | 53727-1 | Retainer, Air Tunnel | - |
|
- | ||||
| 27 | 65651-9 | Shelf, Frz. No.1 | - |
|
- | ||||
| 28 | 65651-1 | Shelf, Frz. No.2,3,4 | - |
|
- | ||||
| 29 | 66648-1 | Trim,frzr Shelves(front&back) | - |
|
- | ||||
| 30 | 06100011 | Freezer Drawer | - |
|
- | ||||
| 31 | 06100012 | Insert, Pan | - |
|
- | ||||
| 32 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-6) | - |
|
$ 11.19 | ||||
| 32 | 57418-1 | Clip,food Liner Mount.(slides) | - |
|
- |
