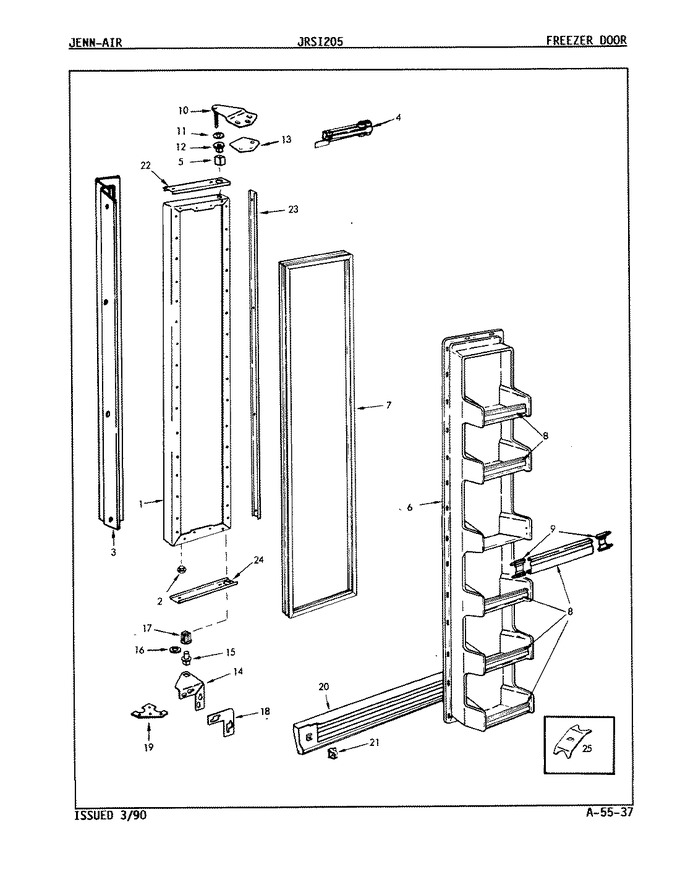

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice Maker Section


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66687-1-AM		Outer Panel-almond	-	Appelez-nous	-
1	66687-1-WW		Outer Panel-white	-	Appelez-nous	-
2	495034-900		Plug Button, Door	-	Appelez-nous	-
3	65275-4		Screw	-	Appelez-nous	-
3	68206-1		Handle, Frz. Door	-	Appelez-nous	-
4	52613-1		Insulation, Closer	-	Appelez-nous	-
4	52614-1		Bracket, Closer	-	Appelez-nous	-
4	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
5	55990-1		Seal Sleeve	-	Appelez-nous	-
6	59433-215		Inner Panel	-	Appelez-nous	-
6	9986-12		Screw,door Liner	-	Appelez-nous	-
7	53712-23		Gasket, Door	-	Appelez-nous	-
8	WP61003045		Trim, Shelf   (Replaces: 68410-6)	-			$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	-			$ 9.39
10	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
10	53709-22		Hinge, Upper	-	Appelez-nous	-
10	66875-1		Cover, Upper Hinge (chrome)	-	Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
12	66036-2		Bushing, Upper Hinge	-	Appelez-nous	-
13	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
14	403062-801		Screw	-	Appelez-nous	-
14	60630-10		Hiner, Lower (chrome)	-			$ 26.18
15	53672-1		Pin, Lower Hinge	-	Appelez-nous	-
16	54233-1		Washer	-			$ 7.71
17	66034-1		Bushing, Lower Hinge	-			$ 19.76
18	60626-1		Shim, Lower Hinge	-	Appelez-nous	-
19	65964-1		Tapping Plate, Lower Hinge	-	Appelez-nous	-
20	58437-45		Kickplate	-	Appelez-nous	-
21	52854-3		Clip, Kickplate	-	Appelez-nous	-
21	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)	-			$ 6.98
22	68201-1		Trim, Perimeter Top Fz	-	Appelez-nous	-
23	68205-1		Trim, Perimeter (side)	-	Appelez-nous	-
24	68202-1		Trim, Perimeter Bottom Frzr	-	Appelez-nous	-
25	66799-1		Achor, Screw	-	Appelez-nous	-
25	65275-15		Screw	-	Appelez-nous	-
25	66723-1		Clip	-	Appelez-nous	-
