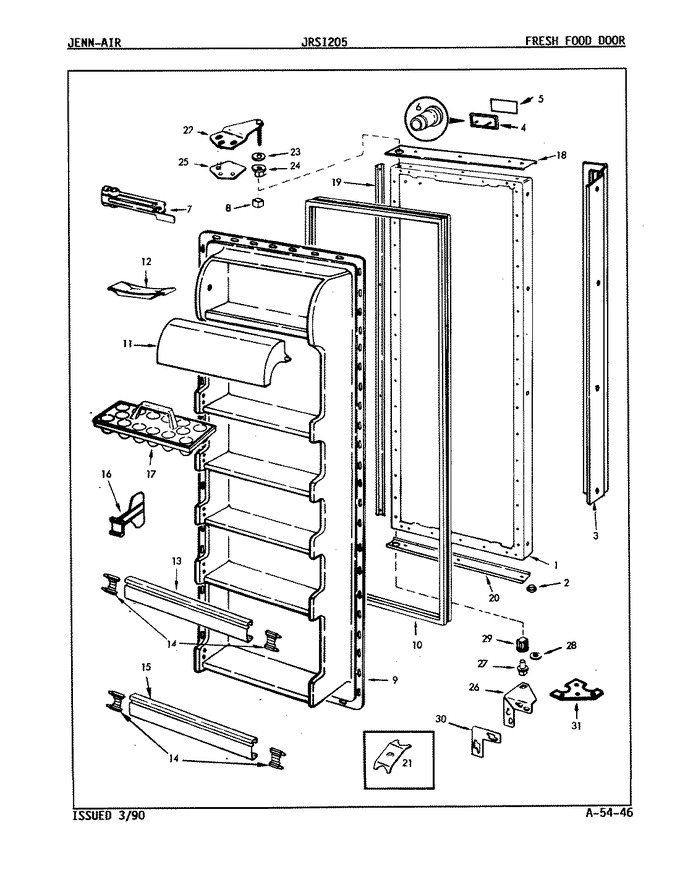

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice Maker Section
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66688-1-WW | Outer Panel, (white) | - |
|
- | ||||
| 2 | 495034-900 | Plug Button, Door | - |
|
- | ||||
| 2 | 495039-900 | Plug | - |
|
- | ||||
| 3 | 65275-4 | Screw | - |
|
- | ||||
| 3 | 68206-2 | Handle, F.f. Door | - |
|
- | ||||
| 4 | 66641-1 | Bezel, Nameplate | - |
|
- | ||||
| 5 | 68061-4 | Insert, Nameplate | - |
|
- | ||||
| 6 | 68381-1 | Retainer, Nameplate Bezel | - |
|
- | ||||
| 7 | 52614-1 | Bracket, Closer | - |
|
- | ||||
| 7 | 54485-1 | Closer, Door | - |
|
- | ||||
| 7 | 52613-1 | Insulation, Closer | - |
|
- | ||||
| 7 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 8 | 55990-1 | Seal Sleeve | - |
|
- | ||||
| 9 | 65944-9 | Liner, Door | - |
|
- | ||||
| 9 | 9986-12 | Screw,door Liner | - |
|
- | ||||
| 10 | 66929-6 | Gasket | - |
|
- | ||||
| 11 | 66184-357 | Door, Dairy | - |
|
- | ||||
| 12 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 13 | 59258-84 | Trim, Door Shelf | - |
|
- | ||||
| 14 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | - |
|
$ 9.39 | ||||
| 15 | 68410-7 | Trim, Shelf | - |
|
- | ||||
| 16 | 64097-10 | Organizer, Shelf | - |
|
- | ||||
| 17 | 60066-13 | Tray, Egg | - |
|
- | ||||
| 18 | 68219-1 | P. Trim, Top | - |
|
- | ||||
| 19 | 68205-2 | Trim, Perimeter Trim (side) | - |
|
- | ||||
| 20 | 68220-1 | P. Trim, Btm | - |
|
- | ||||
| 21 | 66723-1 | Clip | - |
|
- | ||||
| 21 | 65275-15 | Screw | - |
|
- | ||||
| 22 | 53709-22 | Hinge, Upper | - |
|
- | ||||
| 22 | 66875-1 | Cover, Upper Hinge (chrome) | - |
|
- | ||||
| 22 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 23 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 24 | 66036-2 | Bushing, Upper Hinge | - |
|
- | ||||
| 25 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 26 | 403062-801 | Screw | - |
|
- | ||||
| 26 | 60630-12 | Hinge, Lower | - |
|
- | ||||
| 27 | 53672-1 | Pin, Lower Hinge | - |
|
- | ||||
| 28 | 54233-1 | Washer | - |
|
$ 7.71 | ||||
| 29 | 66034-1 | Bushing, Lower Hinge | - |
|
$ 19.76 | ||||
| 30 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 31 | 65964-1 | Tapping Plate, Lower Hinge | - |
|
- |
