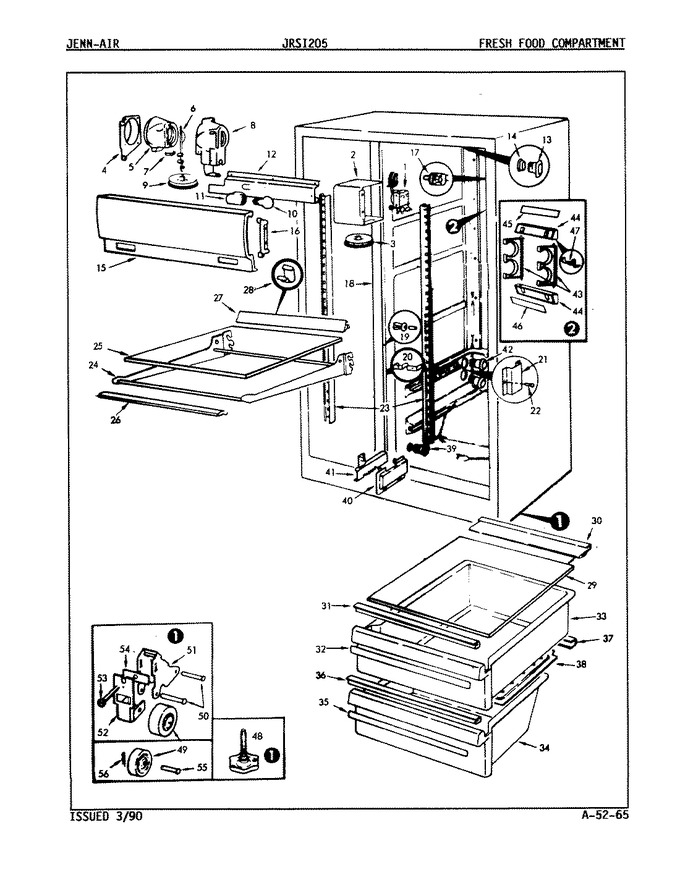

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice Maker Section
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 52881-41 | Control, Temperature | - |
|
- | ||||
| 1 | 67692-1 | Insulation, Control | - |
|
- | ||||
| 1 | 401012-1 | Screw, Control Mounting | - |
|
- | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 2 | 53682-10 | Housing, Temperature Control | - |
|
- | ||||
| 3 | 29893-7 | Knob, Temp. Control | - |
|
- | ||||
| 4 | 53835-2 | Orifice, Freezer Control | - |
|
- | ||||
| 5 | 58767-1 | Insulation, Housing | - |
|
- | ||||
| 6 | 52587-2 | Damper | - |
|
- | ||||
| 7 | 52648-1 | Spring, Baffle | - |
|
- | ||||
| 8 | 400027-1 | Screw | - |
|
- | ||||
| 8 | 58760-2 | Housing, Freezer Control | - |
|
- | ||||
| 9 | 400001-1 | Screw | - |
|
- | ||||
| 9 | 29893-8 | Knob, Freezer Control | - |
|
- | ||||
| 10 | W10887190 | Bulb, Light (60w) (Replaces: 55771-2) | - |
|
Immediately | $ 16.48 | |||
| 11 | 29814-2 | Receptacle, Light | - |
|
- | ||||
| 12 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 12 | 59740-1 | Housing | - |
|
- | ||||
| 13 | 57410-1 | Tunnel | - |
|
- | ||||
| 14 | 57411-1 | Retainer | - |
|
- | ||||
| 15 | 65578-21 | Shield, Light | - |
|
- | ||||
| 16 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 16 | 53686-2 | Support | - |
|
- | ||||
| 17 | 56432-2 | Switch | - |
|
- | ||||
| 17 | 65512-1 | Spacer | - |
|
- | ||||
| 18 | 67000-1-AM | Mullion Bar (almond) | - |
|
- | ||||
| 18 | 67000-1-WW | Mullion Bar (white) | - |
|
- | ||||
| 19 | 59920-9 | Stud, (alm) | - |
|
- | ||||
| 19 | 59920-13 | Stud, (white) | - |
|
- | ||||
| 20 | 67060-1 | Clip, Mullion | - |
|
- | ||||
| 21 | 62128-1 | Air Deflector | - |
|
- | ||||
| 22 | 28013-2 | Rivet, Air Tunnel | - |
|
- | ||||
| 23 | 400037-28 | Screw | - |
|
- | ||||
| 23 | 58381-4 | Rail, Shelf Support | - |
|
- | ||||
| 23 | 60122-1 | Support, Shelf (upper) | - |
|
- | ||||
| 23 | 60127-1 | Rail, Support (lower) | - |
|
- | ||||
| 24 | 65618-4 | Frame, Shelf | - |
|
- | ||||
| 25 | 68405-11 | Glass | - |
|
- | ||||
| 26 | 66649-1 | Trim | - |
|
- | ||||
| 27 | 65276-10 | Trim | - |
|
- | ||||
| 28 | 66333-1 | Clip, Shelf Trim | - |
|
- | ||||
| 29 | 65687-1 | Shelf, Crisper (glass) | - |
|
- | ||||
| 30 | 68157-1 | Seal, Crisper Pan (rear) | - |
|
- | ||||
| 31 | 65650-1 | Seal, Crisper Pan (front) | - |
|
- | ||||
| 32 | 68124-66 | Insert, Meat Pan | - |
|
- | ||||
| 33 | 66637-28 | Pan, Crisper | - |
|
- | ||||
| 34 | 66637-29 | Pan, Meat | - |
|
- | ||||
| 35 | 68124-66 | Insert, Meat Pan | - |
|
- | ||||
| 36 | 65648-1 | Seal, Meat Pan (front) | - |
|
- | ||||
| 37 | 65649-1 | Seal, Meat Pan (rear) | - |
|
- | ||||
| 38 | 65608-3 | Cover, Meat Pan | - |
|
- | ||||
| 39 | 53726-2 | Tunnel, Air (meat) | - |
|
- | ||||
| 39 | 53727-1 | Retainer, Air Tunnel | - |
|
- | ||||
| 40 | 65737-2 | Control Housing | - |
|
- | ||||
| 41 | 65736-1 | Slide Control, (meat) | - |
|
- | ||||
| 41 | 56686-4 | Clip | - |
|
- | ||||
| 42 | 53726-1 | Air Tunnel | - |
|
- | ||||
| 43 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 43 | 56519-4 | Rack, Wine | - |
|
- | ||||
| 44 | 65689-1 | Support, Wine Rack | - |
|
- | ||||
| 45 | 68821-4 | Insert | - |
|
- | ||||
| 46 | 68821-7 | Insert | - |
|
- | ||||
| 47 | 58057-1 | Spring, Wine Rack | - |
|
- | ||||
| 48 | W11117769 | Leg, Leveling (Replaces: 6012-8) | - |
|
Immediately | $ 16.61 | |||
| 49 | 29834-2 | Wheel | - |
|
- | ||||
| 50 | 64965-1 | Pin, Wheel | - |
|
- | ||||
| 51 | 62794-1 | Bracket, Wheel | - |
|
- | ||||
| 52 | 62795-1 | Faceplate Bracket | - |
|
- | ||||
| 53 | 56487-2 | Screw, Wheel Adjustment | - |
|
- | ||||
| 54 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 54 | 59101-1 | Tapping Plate, Wheel | - |
|
- | ||||
| 55 | 62580-1 | Pivot Pin, Wheel (rear) | - |
|
- | ||||
| 56 | 57418-1 | Clip,food Liner Mount.(slides) | - |
|
- | ||||
| 56 | 62581-1 | Clip, Retaining Wheel (rear) | - |
|
- | ||||
| 56 | 56438-1 | Clip, Food Liner Mount.top&bot | - |
|
- |
