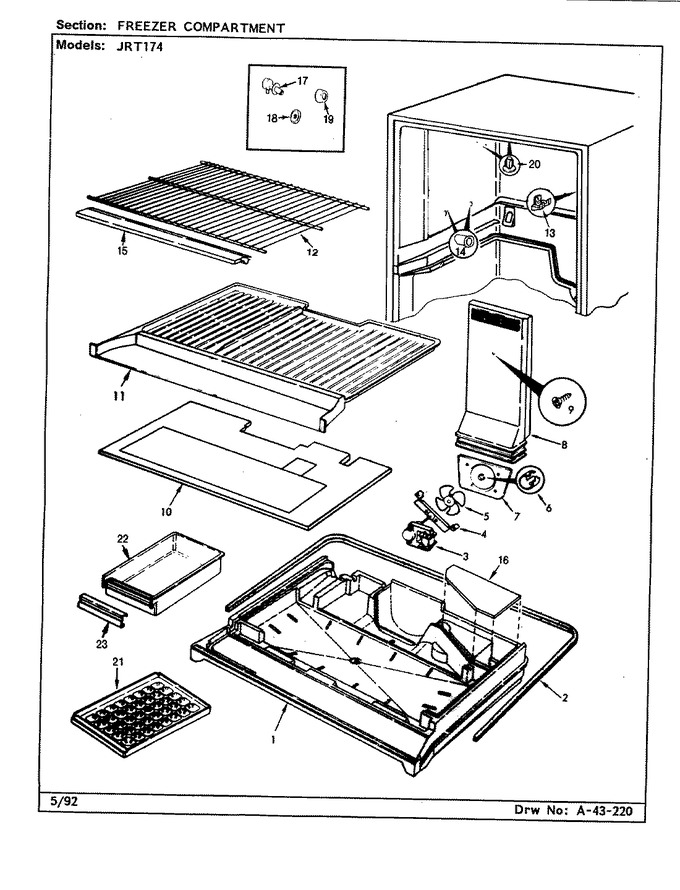

01 - Freezer Compartment (b/m Cj23a)


02 - Freezer Door (b/m Cj23a)


03 - Fresh Food Compartment (b/m Cj23a)


04 - Fresh Food Door (b/m Cj23a)


05 - Optional Ice Maker Kit (b/m Cj23a)


06 - Shelves & Accessories (b/m Cj23a)


07 - Unit Compartment & System (b/m Cj23a)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67518-2		Mullion Divider Tray	CJ23A	Appelez-nous	-
2	67730-1		Seal, Front Corner	CJ23A	Appelez-nous	-
2	68866-1		Seal	CJ23A	Appelez-nous	-
3	406062-1		Screw	CJ23A	Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)	CJ23A		Immediately	$ 104.99
4	400015-12		Screw	CJ23A	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	CJ23A	Appelez-nous	-
5	64359-1		Blade, Evaporator Fan	CJ23A	Appelez-nous	-
6	420092-900		Washer, Spring	CJ23A	Appelez-nous	-
7	60608-2		Orifice, Fan Blade	CJ23A	Appelez-nous	-
8	68592-2		Tunnel, Air	CJ23A	Appelez-nous	-
8	66325-34		Seal, Air Tunnel----na	CJ23A	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	CJ23A		Immediately	$ 12.62
10	66403-1		Cover, Evaporator	CJ23A	Appelez-nous	-
11	66460-1		Bottom, Frz.	CJ23A	Appelez-nous	-
11	68946-1		Seal	CJ23A	Appelez-nous	-
12	60438-29		Shelf	CJ23A	Appelez-nous	-
13	400019-1		Screw	CJ23A	Appelez-nous	-
13	66101-1		Stud, Shelf	CJ23A	Appelez-nous	-
14	60313-1		Cup, Shelf	CJ23A	Appelez-nous	-
15	60414-61		Trim	CJ23A	Appelez-nous	-
16	66480-4		Cover, Plenum	CJ23A	Appelez-nous	-
17	68307-1		Grommet, Water Entry	CJ23A	Appelez-nous	-
18	68187-1		Cap, Connector	CJ23A	Appelez-nous	-
19	20218-1		Plug, Grommet	CJ23A	Appelez-nous	-
20	67557-1		Plug Button	CJ23A	Appelez-nous	-
21	WP61002140		Ice Cube Tray   (Replaces: 60112-1)	CJ23A			$ 18.23
22	60653-1		Pan, Ice	CJ23A	Appelez-nous	-
23	60132-95		Trim, Ice Pan	CJ23A	Appelez-nous	-
