01 - Freezer Compartment (b/m Cj23a)


02 - Freezer Door (b/m Cj23a)


03 - Fresh Food Compartment (b/m Cj23a)


04 - Fresh Food Door (b/m Cj23a)

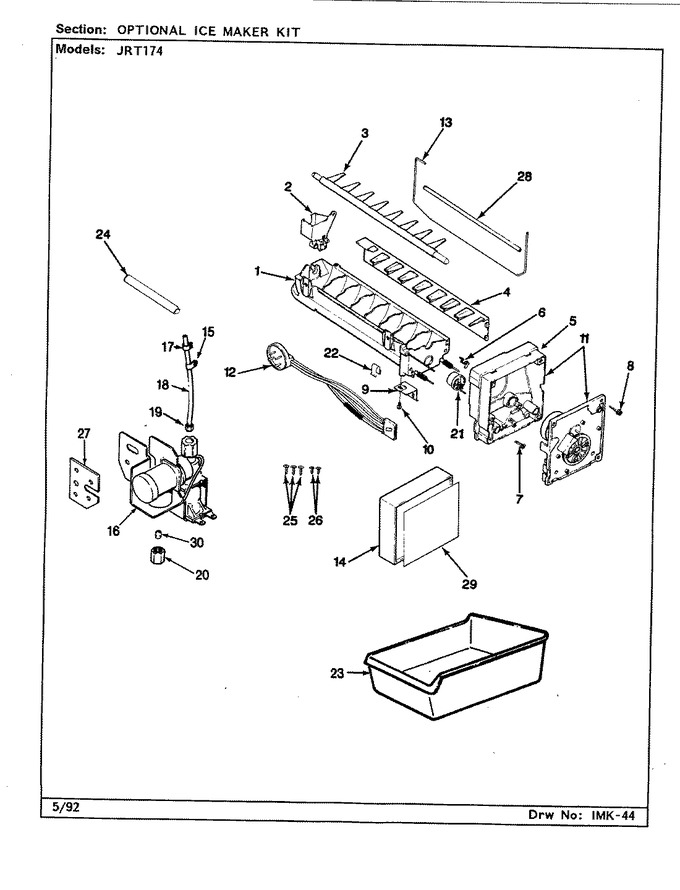

05 - Optional Ice Maker Kit (b/m Cj23a)


06 - Shelves & Accessories (b/m Cj23a)


07 - Unit Compartment & System (b/m Cj23a)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7824706Q		Mold & Heater Assy.   (Replaces: 95098-1)	CJ23A		Immediately	$ 150.62
1	95099-1		Grease, Silicone	CJ23A	Appelez-nous	-
2	WP628356		Inlet, Water   (Replaces: 95100-1)	CJ23A			$ 46.07
3	WP627843		Ejector, Ice   (Replaces: 95101-1)	CJ23A			$ 75.24
4	WP2182124		Stripper, Ice   (Replaces: 95102-1)	CJ23A			$ 77.45
5	WP2195914		Support, Module Housing   (Replaces: 95103-1)	CJ23A			$ 94.11
6	WP2315522		Retainer, Thermostat   (Replaces: 95104-1)	CJ23A			$ 9.95
7	95105-1		Screw	CJ23A	Appelez-nous	-
8	WP681249		Screw   (Replaces: 95106-1)	CJ23A		Immediately	$ 7.07
9	WP2256087		Bracket, Module & Heater   (Replaces: 95107-1)	CJ23A			$ 83.70
10	WP489128		Screw, Bracket   (Replaces: 95108-1)	CJ23A			$ 9.79
11	D7824706Q		Module, Ice Maker   (Replaces: 95109-1)	CJ23A		Immediately	$ 150.62
12	67910-1		Wire Harness	CJ23A	Appelez-nous	-
13	68112-1		Arm, Sensor	CJ23A	Appelez-nous	-
14	WPW10289690		Cover Ice Maker   (Replaces: 68113-1)	CJ23A		Immediately	$ 7.56
15	W11233072		Screw   (Replaces: 400016-1)	CJ23A		Immediately	$ 12.62
15	WP488366		Clamp, Feeder Tube   (Replaces: 23197-8)	CJ23A			$ 10.06
16	WP61005273		Valve, Water   (Replaces: 69364-1)	CJ23A			$ 119.89
17	WPM0114003		Clamp, Spring   (Replaces: 60333-4)	CJ23A			$ 9.95
18	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)	CJ23A			$ 11.19
19	WP627018		Nut, Compression (1/4``)   (Replaces: 69583-1)	CJ23A			$ 9.87
20	WP245183		Nut, Brass (1/4``)   (Replaces: 69432-1)	CJ23A			$ 7.01
21	WP627985		Thermostat   (Replaces: 95092-1)	CJ23A		Immediately	$ 98.26
21	95093-1		Cement, Alumilastic (4 Oz.)	CJ23A			$ 49.64
22	WP628379		Clamp, Wire Harness   (Replaces: 68118-1)	CJ23A			$ 9.51
23	68327-1		Pan, Ice	CJ23A	Appelez-nous	-
24	67666-5		Tube, Water Entry	CJ23A	Appelez-nous	-
25	W11772394		Screw   (Replaces: 400021-1)	CJ23A		Immediately	$ 10.94
26	WP250830		Screw   (Replaces: 401017-1)	CJ23A			$ 7.16
27	69363-1		Bracket, Water Valve	CJ23A	Appelez-nous	-
28	67556-2		Sleeve, Sensor Arm	CJ23A	Appelez-nous	-
29	67428-2		Insert,ice Maker Cover	CJ23A	Appelez-nous	-
30	WP487627		Sleeve, Brass   (Replaces: 69431-1)	CJ23A			$ 10.05
