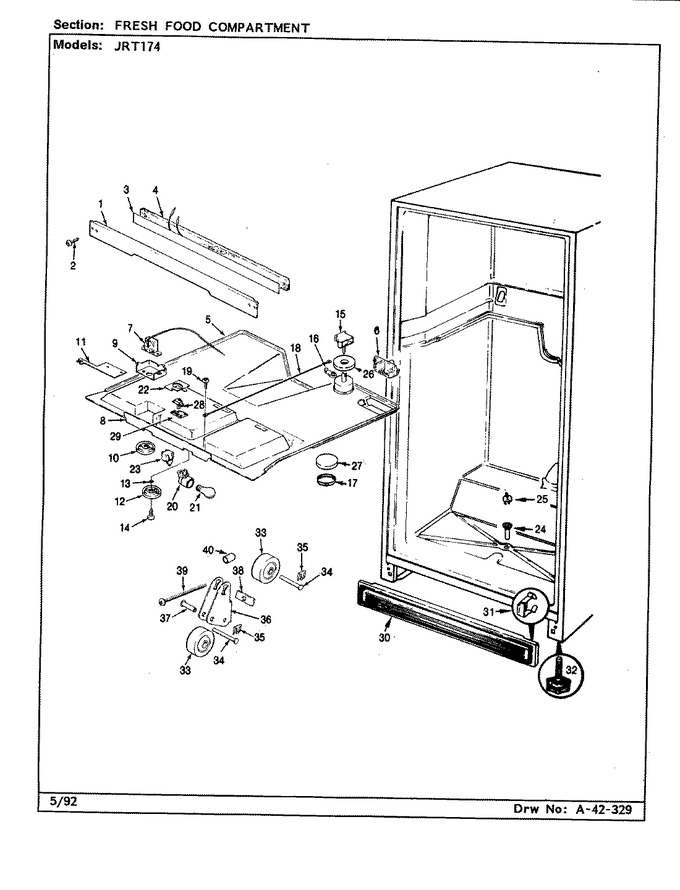

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68434-1-WW | Divider, Mullion (wht) | CJ23A |
|
- | ||||
| 2 | 65275-54 | Screw | CJ23A |
|
- | ||||
| 2 | 65275-35 | Screw | CJ23A |
|
- | ||||
| 3 | 68830-1 | Heater Wire | CJ23A |
|
- | ||||
| 4 | 69146-1 | Wire Harness Mullion | CJ23A |
|
- | ||||
| 4 | 60140-1 | Insulation | CJ23A |
|
- | ||||
| 5 | 68530-2 | Top, F.f. Compartment | CJ23A |
|
- | ||||
| 6 | 60120-2 | Deflector | CJ23A |
|
- | ||||
| 7 | 406013-1 | Screw | CJ23A |
|
- | ||||
| 7 | WP68601-6 | Control, Temperature (Replaces: 68601-3) | CJ23A |
|
Immediately | $ 233.80 | |||
| 8 | 60571-70 | Insert, Control Escutcheon | CJ23A |
|
- | ||||
| 9 | 28013-2 | Rivet, Air Tunnel | CJ23A |
|
- | ||||
| 9 | 60083-1 | Cover, Temperature Control | CJ23A |
|
- | ||||
| 9 | 405012-1 | Screw | CJ23A |
|
- | ||||
| 10 | 68600-8 | Knob, Temp. Control | CJ23A |
|
- | ||||
| 11 | 60147-1 | Bracket, Control | CJ23A |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 26397-2) | CJ23A |
|
$ 12.14 | ||||
| 12 | 68600-7 | Knob, Control | CJ23A |
|
- | ||||
| 13 | 420092-900 | Washer, Spring | CJ23A |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 405016-103) | CJ23A |
|
Immediately | $ 12.62 | |||
| 15 | 67558-6 | Damper | CJ23A |
|
- | ||||
| 16 | 67636-1 | Crank, Frz. Control | CJ23A |
|
- | ||||
| 17 | 67493-1 | Cover, Crank | CJ23A |
|
- | ||||
| 18 | 67499-3 | Rod, Freezer Control | CJ23A |
|
- | ||||
| 19 | 420005-1 | Washer, Control Rod | CJ23A |
|
- | ||||
| 19 | WP59002061 | Screw (Replaces: 65275-13) | CJ23A |
|
$ 6.98 | ||||
| 20 | 60577-1 | Socket, Light | CJ23A |
|
- | ||||
| 21 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) | CJ23A |
|
Immediately | $ 1.98 | |||
| 22 | WP210720 | Rivet (Replaces: 26397-2) | CJ23A |
|
$ 12.14 | ||||
| 22 | 60147-2 | Bracket, Light Socket | CJ23A |
|
- | ||||
| 22 | 29675-22 | Ground Wire | CJ23A |
|
- | ||||
| 23 | W11384469 | Switch, Light (Replaces: 55732-1) | CJ23A |
|
Immediately | $ 33.51 | |||
| 24 | 54531-8 | Grommet | CJ23A |
|
- | ||||
| 25 | 65039-1 | Cap, Drain Tube | CJ23A |
|
- | ||||
| 28 | 60585-1 | Switch, Mullion Heater | CJ23A |
|
- | ||||
| 29 | 60583-1 | Bracket, Switch | CJ23A |
|
- | ||||
| 29 | 402013-1 | Screw | CJ23A |
|
- | ||||
| 30 | 60237-37 | Kickplate | CJ23A |
|
- | ||||
| 31 | 60100-1 | Clip, Kickplate | CJ23A |
|
$ 5.85 | ||||
| 31 | WP489478 | Screw (Replaces: 400017-1) | CJ23A |
|
$ 6.98 | ||||
| 32 | W11117769 | Leg, Leveling (Replaces: 68664-1) | CJ23A |
|
Immediately | $ 16.61 | |||
| 33 | 29834-2 | Wheel | CJ23A |
|
- | ||||
| 34 | 29835-2 | Pin, Wheel | CJ23A |
|
- | ||||
| 35 | 60216-1 | Clip | CJ23A |
|
- | ||||
| 36 | 67530-1 | Bracket, Wheel | CJ23A |
|
- | ||||
| 37 | 64965-1 | Pin, Wheel | CJ23A |
|
- | ||||
| 38 | 59101-1 | Tapping Plate, Wheel | CJ23A |
|
- | ||||
| 39 | 71003131 | Screw (Replaces: 65275-64) | CJ23A |
|
Immediately | $ 6.07 | |||
| 40 | 24580-4 | Tip, Adjustment Screw | CJ23A |
|
- |
