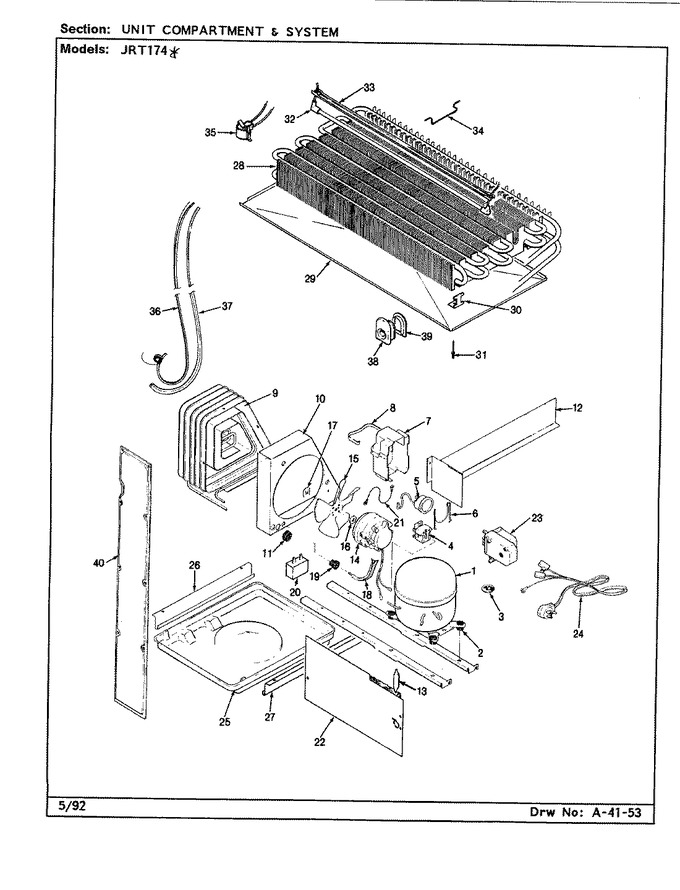

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439652 | Compressor (Replaces: RA1011) | CJ23A |
|
$ 379.03 | ||||
| 2 | 17245-4 | Grommet, Compressor | CJ23A |
|
- | ||||
| 3 | 414001-1 | Screw | CJ23A |
|
- | ||||
| 3 | 62165-1 | Clip | CJ23A |
|
- | ||||
| 4 | 2154436 | Relay, Start (Replaces: 66588-1) | CJ23A |
|
$ 121.45 | ||||
| 5 | 63294-12 | Overload | CJ23A |
|
- | ||||
| 6 | 65887-1 | Clip, Overload | CJ23A |
|
- | ||||
| 7 | 66589-2 | Cover, Terminal | CJ23A |
|
- | ||||
| 8 | 65886-1 | Clip, Terminal Cover | CJ23A |
|
- | ||||
| 9 | 414001-1 | Screw | CJ23A |
|
- | ||||
| 9 | RA43991-1 | Condenser | CJ23A |
|
- | ||||
| 9 | 60408-2 | U-nut, Condenser | CJ23A |
|
- | ||||
| 10 | 414001-1 | Screw | CJ23A |
|
- | ||||
| 10 | 66228-1 | Shroud, Condenser | CJ23A |
|
- | ||||
| 11 | 53351-1 | Grommet, Condenser Tubing | CJ23A |
|
- | ||||
| 12 | WP489478 | Screw (Replaces: 400017-1) | CJ23A |
|
$ 6.98 | ||||
| 12 | 66493-2 | Baffle | CJ23A |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900) | CJ23A |
|
Immediately | $ 27.70 | |||
| 14 | 65275-33 | Screw | CJ23A |
|
- | ||||
| 14 | 833697 | Motor, Condenser Fan (Replaces: 68481-2) | CJ23A |
|
Immediately | $ 79.34 | |||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60485-1) | CJ23A |
|
$ 114.00 | ||||
| 16 | 19913-4 | Washer | CJ23A |
|
- | ||||
| 17 | WP486692 | Clip, Fan Blade (Replaces: 19914) | CJ23A |
|
$ 7.04 | ||||
| 18 | 66225-1 | Bracket, Fan Motor | CJ23A |
|
- | ||||
| 19 | 56933-1 | Grommet, Bracket | CJ23A |
|
- | ||||
| 20 | 65889-1 | Capacitor, Run | CJ23A |
|
- | ||||
| 20 | WP489478 | Screw (Replaces: 400017-1) | CJ23A |
|
$ 6.98 | ||||
| 21 | 29675-3 | Ground Wire | CJ23A |
|
- | ||||
| 22 | 66338-1 | Cover, Unit Compartment | CJ23A |
|
- | ||||
| 22 | WP488729 | Screw (Replaces: 9986-45) | CJ23A |
|
Immediately | $ 7.01 | |||
| 23 | 69543-2 | Timer, Defrost | CJ23A |
|
- | ||||
| 23 | 405007-1 | Screw | CJ23A |
|
- | ||||
| 24 | 52890-2 | Cord, Power | CJ23A |
|
- | ||||
| 25 | 68236-1 | Pan, Drain | CJ23A |
|
$ 89.75 | ||||
| 26 | 60555-1 | Rail, Drain Pan (rt) | CJ23A |
|
- | ||||
| 27 | WP489478 | Screw (Replaces: 400017-1) | CJ23A |
|
$ 6.98 | ||||
| 27 | 60555-2 | Rail, Drain Pan (lt) | CJ23A |
|
- | ||||
| 28 | RA43620-10 | Evaporator | CJ23A |
|
- | ||||
| 29 | 60101-7 | Tray, Drip | CJ23A |
|
- | ||||
| 30 | 60108-1 | Bracket, Coil To Tray | CJ23A |
|
- | ||||
| 31 | WP210720 | Rivet (Replaces: 26397-9) | CJ23A |
|
$ 12.14 | ||||
| 32 | WP60106-34 | Heater, Defrost (Replaces: 60106-34) | CJ23A |
|
Immediately | $ 126.43 | |||
| 33 | 60109-4 | Shield, Defrost Heater | CJ23A |
|
- | ||||
| 34 | 60263-1 | Clip, Defrost Heater | CJ23A |
|
- | ||||
| 35 | WP52085-28 | Thermostat, Defrost (Replaces: 52085-28) | CJ23A |
|
$ 107.65 | ||||
| 36 | RA43645-13 | Heat Exchanger | CJ23A |
|
- | ||||
| 37 | 65398-1 | Cover, Heat Exchanger | CJ23A |
|
- | ||||
| 37 | WP2205813 | Wire Tie (Replaces: 66223-1) | CJ23A |
|
$ 6.95 | ||||
| 38 | 60068-1 | Grommet, Tube Entry | CJ23A |
|
- | ||||
| 39 | 60069-1 | Retainer, Entry Grommet | CJ23A |
|
- | ||||
| 40 | WP489478 | Screw (Replaces: 400017-1) | CJ23A |
|
$ 6.98 | ||||
| 40 | 60110-2 | Cover, Wire Harness | CJ23A |
|
- | ||||
| 40 | STU152UA | Manual, Use & Care | CJ23A |
|
- | ||||
| 40 | 60177-2 | Retainer, Main Wire Harness | CJ23A |
|
- | ||||
| 40 | 69161-1 | Wire Harness, Main | CJ23A |
|
- |
