SELECT A DIAGRAM

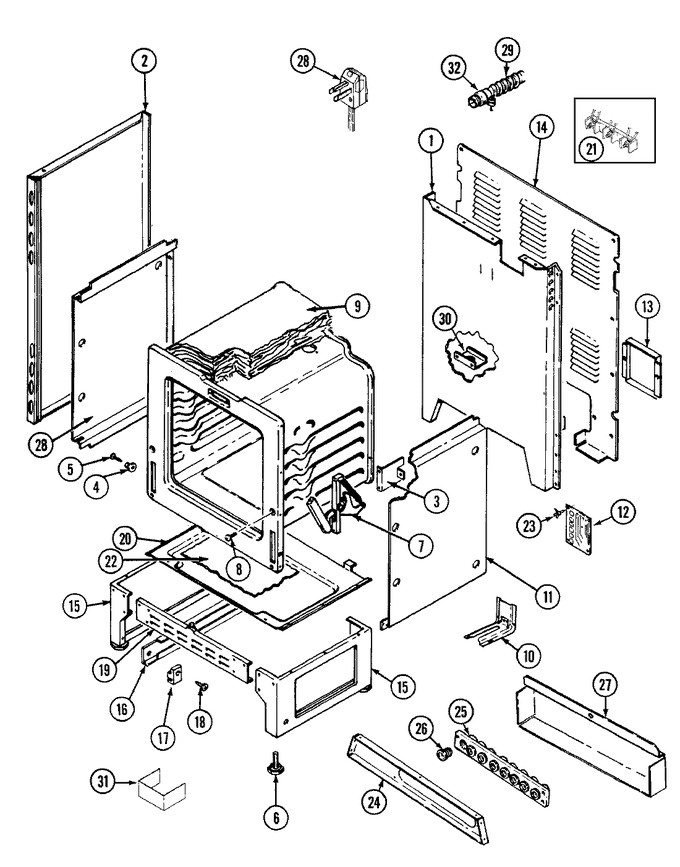

01 - Body
02 - Door
03 - Internal Controls
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F193-80 | Back, Main | 07 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P290-60) | 07 |
|
Immediately | $ 12.62 | |||
| 2 | 2618F096-71 | Panel, Side (rt-wht) | 07 |
|
- | ||||
| 2 | 2618F095-71 | Panel, Side (lt-wht) | 07 |
|
- | ||||
| 3 | 3807F400-51 | Support,oven Rear | 07 |
|
- | ||||
| 4 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 07 |
|
$ 7.07 | ||||
| 5 | W11772394 | Screw (Replaces: 7101P334-60) | 07 |
|
Immediately | $ 10.94 | |||
| 6 | 7101P316-60 | Leg, Leveling | 07 |
|
- | ||||
| 7 | 7106P049-60 | Hinge, Door | 07 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7101P115-60) | 07 |
|
$ 4.29 | ||||
| 9 | 4804F030-60 | Insulation, Back & Bottom | 07 |
|
- | ||||
| 9 | 4804F029-60 | Insulation, Wrap | 07 |
|
- | ||||
| 10 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 07 |
|
Immediately | $ 4.69 | |||
| 10 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 07 |
|
$ 26.33 | ||||
| 11 | 3804F103-51 | Retainer, Insulation (side) | 07 |
|
- | ||||
| 12 | 3807F439-51 | Support, Relay Board | 07 |
|
- | ||||
| 12 | 7428P018-60 | Board, Relay | 07 |
|
- | ||||
| 13 | 4005F427-51 | Cover, Access | 07 |
|
- | ||||
| 14 | 4005F447-51 | Cover, Wire | 07 |
|
- | ||||
| 15 | 4020W011-80 | Pedestal (sides) | 07 |
|
- | ||||
| 16 | 3406F028-51 | Runner, Drawer | 07 |
|
- | ||||
| 17 | 8004P033-60 | Support, Drawer | 07 |
|
- | ||||
| 18 | 7101P103-60 | Screw | 07 |
|
- | ||||
| 19 | 4020F001-80 | Pedestal, Front/rear | 07 |
|
- | ||||
| 20 | 3804F112-51 | Retainer, Insulation | 07 |
|
- | ||||
| 21 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 07 |
|
Immediately | $ 31.65 | |||
| 22 | 8312P058-60 | Foil, Insulation Retainer | 07 |
|
- | ||||
| 23 | 8004P020-60 | Support, Relay Board | 07 |
|
- | ||||
| 23 | 8004P032-60 | Support, Relay | 07 |
|
- | ||||
| 24 | 3801F309-80 | Bracket, Fuse | 07 |
|
- | ||||
| 25 | 7401A031-60 | Block, Fuse | 07 |
|
- | ||||
| 26 | 7416P006-60 | Fuse, 125v 15a | 07 |
|
- | ||||
| 26 | 7416P005-60 | Fuse, 125v 20a | 07 |
|
- | ||||
| 27 | 4005F445-51 | Cover, Fuse Block | 07 |
|
- | ||||
| 28 | 7718P014-60 | Cord, Power | 07 |
|
- | ||||
| 29 | 7434P010-60 | Tubing, Conduit (canada) | 07 |
|
- | ||||
| 29 | 5140A041-60 | Wires, Conduit Tubing | 07 |
|
- | ||||
| 30 | 3605F174-51 | Plate, Conduit Tubing | 07 |
|
- | ||||
| 31 | 4005F420-80 | Cover, Leveling Leg | 07 |
|
- | ||||
| 32 | 7417P003-60 | Connector, Cable | 07 |
|
- |
