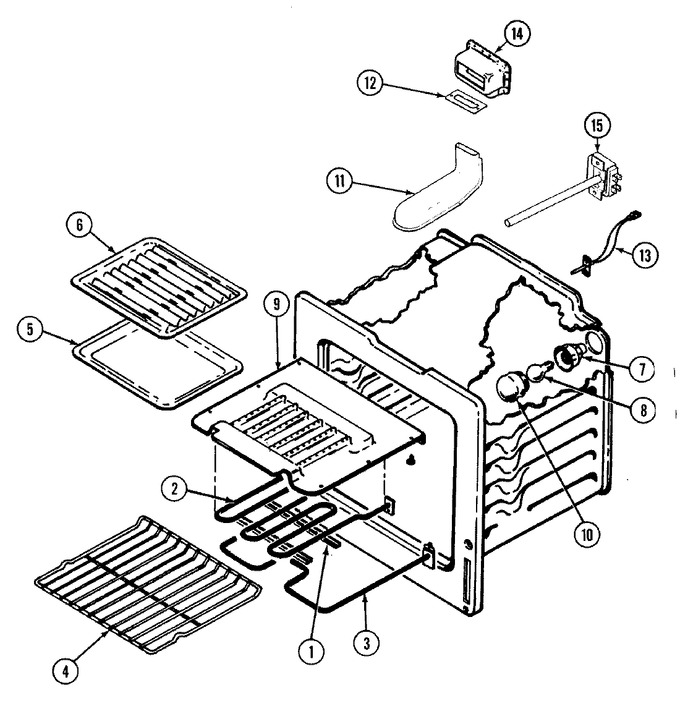

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door
03 - Internal Controls
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 07 |
|
- | ||||
| 1 | W11772394 | Screw (Replaces: 7101P334-60) | 07 |
|
Immediately | $ 10.94 | |||
| 2 | WPY04000059 | Element, Broil (Replaces: Y04000059) | 07 |
|
$ 159.00 | ||||
| 3 | W11233072 | Screw (Replaces: 7101P290-60) | 07 |
|
Immediately | $ 12.62 | |||
| 3 | WP74003019 | Element, Bake (Replaces: Y04000058) | 07 |
|
Immediately | $ 51.10 | |||
| 4 | WPW10282492 | Rack (Replaces: 7801P040-60) | 07 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 07 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 07 |
|
- | ||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 07 |
|
Immediately | $ 66.10 | |||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 07 |
|
Immediately | $ 16.80 | |||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 07 |
|
Immediately | $ 12.62 | |||
| 9 | 3601F202-45 | Baffle. Broil | 07 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 07 |
|
Immediately | $ 71.93 | |||
| 11 | 4006W112-45 | Box, Vent | 07 |
|
- | ||||
| 12 | 7201P055-60 | Gasket, Vent | 07 |
|
- | ||||
| 13 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 07 |
|
Immediately | $ 39.55 | |||
| 14 | 4005F403-51 | Cover, Vent | 07 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 07 |
|
Immediately | $ 12.62 | |||
| 15 | 7404P057-60 | Thermostat, Redundant | 07 |
|
- |
